Description
Automation Level Selectable — the Eco7000 is offered in semi-automatic and automatic configurations, so the control logic, pallet flow, and operator tasks are defined as one system rather than left to on-site improvisation.
Technical Specifications
| Parameter | Value |
|---|---|

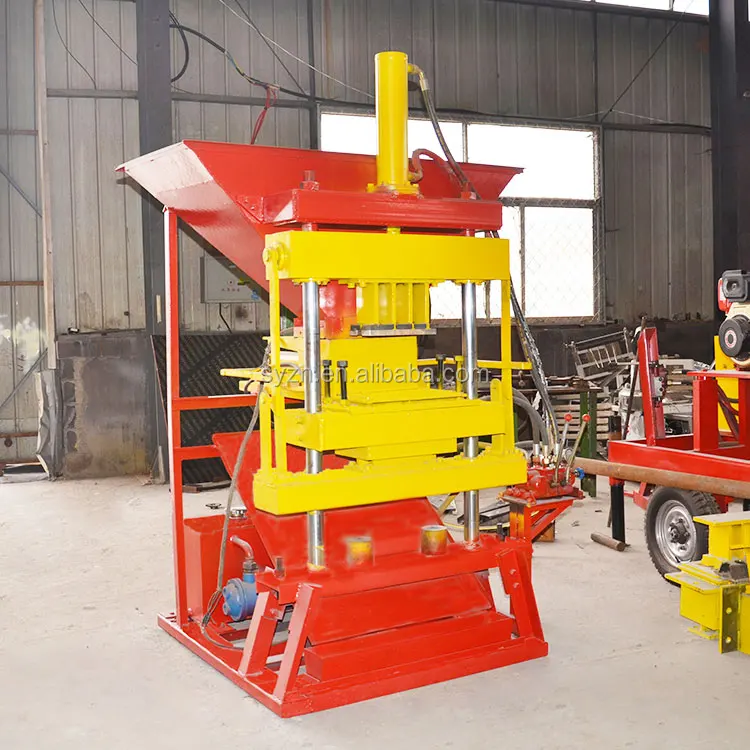

| Model | Eco master 7000 |
| Product Type | Automatic Interlocking Clay Brick Making Machine |
| Overall Dimensions (L×W×H) | 1660×1400×2380 mm |
| Net Weight | 1300 kg |
| Power Source | Electric motor or Diesel engine |
| Rated Power | 7.5 kW (electric) / 12 HP (diesel) |
| Voltage & Frequency | 380V, 3-phase, 50Hz (customizable to local voltage) |
| Hydraulic Pressure | 16–21 MPa |
| Cycle Time | 10–15 s |
| Output Capacity | 4000–6000 pcs/day (8h) (basis not stated in source) |
| Productivity (300×150×100 mm interlocking block) | 2 pcs/mold, 720 pcs/hour, 5760 pcs/day (8h) |
| Productivity (250×125×60 mm interlocking block) | 2 pcs/mold, 720 pcs/hour, 5760 pcs/day (8h) |
| Automation Level | Available in semi-automatic and automatic configurations |
| Pallet Requirement | No pallets required |
| Raw Material Compatibility | Clay (80–97%), Cement (0–8%), Water (~3%) |
| Motor Brand Option | Chinese Siemens Brand |
| Assembly State | Fully assembled, nude packing in container |
| Warranty | 1 year (excluding wearing parts) |
Application Suitability
| Application | Material or Output |
|---|---|
| Interlocking clay brick production for housing projects | Clay-cement blend (80–97% clay, 0–8% cement) |
| Paver production | Clay-cement or full-clay mix |
| On-site brick production without pallet infrastructure | Pallet-free hydraulic pressing |
| Markets requiring compressed earth blocks | Hydraulically pressed earth blocks with interlocking geometry |
What the PLC Screen Actually Controls on an Automatic Interlocking Clay Brick Machine
The PLC does not just run a timer — it governs hydraulic pressure, cycle sequencing, and mix dosing consistency across every single press stroke.
When I was commissioning an interlocking brick line outside Nairobi, the operator kept hitting the emergency stop because the automatic cycle finished faster than he expected. The PLC display was in English, the local team worked in Swahili, and nobody could read the fault codes. The automatic interlocking clay brick machine PLC controlled setup only works when the language, the voltage, and the cycle logic match the people standing in front of it on day one. That is the gap between a machine that runs and a machine that produces [NEED_CITE: PLC interface language requirements for export machinery].
How Automation Removes the Operator Variable
The Eco7000 in its automatic configuration takes the press cycle out of the operator’s hands. Hydraulic pressure, press dwell time, and ejection sequence all follow the PLC program rather than individual judgment. This means the interlocking bricks produced at hour eight of a shift carry the same density as those from the first hour. For a plant owner moving away from manual or egg-laying machines, this consistency is the real reason to invest in the automatic interlocking clay brick machine PLC controlled system.
Staging Your Automation Investment
The Eco master 7000 is available in both semi-automatic and automatic configurations. A buyer setting up a first block plant can start with the semi-automatic version, where an operator manages material feeding and brick removal, then add automatic dosing and stacking later. The hydraulic core, the mould geometry, and the pressing parameters stay identical across both tiers. This upgrade path means the machine you install today does not become obsolete when your output requirements grow [NEED_CITE: staged automation upgrade paths in block production].
Reading the Specs That Matter for Interlocking Brick Density
The hydraulic pressure range of 16–21 MPa is the figure that determines whether your interlocking bricks survive transport and stacking without cracking. At the lower end of that range, you are pressing a softer block suited to single-story infill. At the upper end, the same Eco master 7000 produces a denser block that can carry load in a two-story structure. The cycle time of 10–15 seconds per press sets your real throughput ceiling — not a brochure number, but the interval between one finished set of bricks and the next. The dual power source option, a 7.5 kW electric motor or a 12 HP diesel engine, matters on project sites where grid voltage drops unpredictably. A diesel-driven press keeps producing when the grid fails mid-cycle, preventing half-pressed material from hardening inside the mould.
The Hidden Cost of Skipping the Voltage Confirmation
A machine wired for 380V 50Hz that arrives at a site running 415V 60Hz will burn its motor within the first week. I have seen this happen twice, both times because the voltage confirmation step was skipped to save a few days in the ordering process. The Eco master 7000 is customizable to local voltage, but that customization only happens if you state your exact supply specification before production starts. A plant owner who treats voltage as an afterthought will spend more on rewinding motors than the customization would have cost [NEED_CITE: voltage and frequency standards by export market].
Why Source This Machine Here
Block machinery is our single focus, which means the Eco7000 press, its moulds, and its material handling are specified as one matched system rather than assembled from separate suppliers. We configure the machine against your actual clay sample and target block format, not a catalogue default. Mould design covers the interlocking geometries your market sells, with custom drawings available for project-specific profiles. The automation level is selectable, so you can commission a semi-automatic line today and upgrade as your order book justifies it. Installation includes operator training on your specific PLC language and control layout, and hydraulic wear parts ship with the first container so replacements are on hand before the first service interval falls due.
Documentation & Verification
- Capacity calculation sheet stating which interlocking format the daily output assumes
- PLC language and voltage confirmation document signed before production begins
- Hydraulic schematic matching the installed valve and pump configuration
- Factory test record on your clay-cement blend before container loading

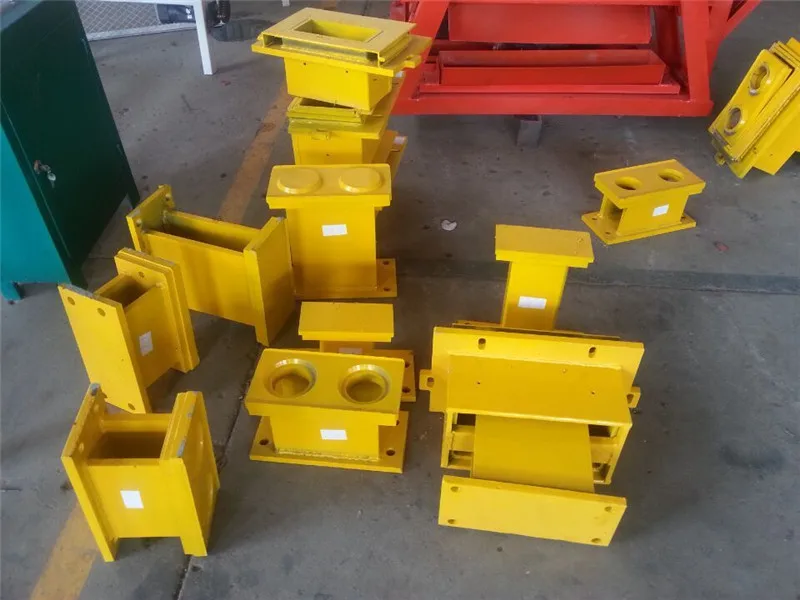

- Mould drawing and format list covering every interlocking profile in your order
- Wear parts list with part numbers for hydraulic seals and press components
Installation, Commissioning & Support
- Site preparation for the 1660×1400 mm footprint with level concrete pad
- Dedicated 3-phase circuit matching the confirmed voltage and frequency specification
- Machine arrives fully assembled, requiring only power connection and mould fitting
- PLC parameter setting against your clay mix and target block density
- Operator training in the confirmed display language covering cycle start, fault codes, and mould change
- First shipment includes hydraulic seal kits and wear parts for the initial service interval
Before You Send the Inquiry
Tell us which interlocking block format your market actually buys — the 300×150×100 mm or the 250×125×60 mm profile, or a custom geometry. Confirm your site voltage and frequency, the display language your operators read, and whether grid reliability requires the diesel engine option. Share a sample of your local clay so we can confirm the mix ratio and pressing pressure before the machine enters production.
Frequently Asked Questions
Q: How is the output capacity verified, and which block format does the daily figure assume?
A: The stated productivity of 5760 pieces per day over eight hours is based on either the 300×150×100 mm or the 250×125×60 mm interlocking block at two pieces per mould and a 10–15 second cycle. The general output range of 4000–6000 pieces per day does not specify a format. We provide a capacity calculation sheet that names the exact block profile, cycle time, and shift length used for the figure in your quotation.
Q: What automation level options are available, and what does each remove from the operator’s workflow?
A: The Eco7000 is available in semi-automatic and automatic configurations. The semi-automatic version requires an operator to manage material feeding and brick removal. The automatic configuration adds PLC-controlled dosing and cycle sequencing, removing timing decisions from the operator and delivering consistent press cycles regardless of shift length or operator experience level.
Q: How is the PLC control system configured for local voltage, frequency, and display language?
A: Voltage, frequency, and HMI language are confirmed in writing before the machine enters production. The standard supply is 380V three-phase at 50Hz, but this is customizable to your site specification. The PLC display language is set to match your operator team. We have seen machines stall on site because the interface language was not locked before shipment.
Q: What mix design parameters have been validated on this machine?
A: The Eco master 7000 is designed for raw material blends of 80–97% clay, 0–8% cement, and approximately 3% water. The hydraulic pressure range of 16–21 MPa accommodates both full-clay and clay-cement mixes. We confirm the exact pressure setting against your local clay sample before the factory test so the machine arrives configured for your material, not a generic default.
Q: What is the upgrade path from semi-automatic to fully automatic operation?
A: The hydraulic core, mould geometry, and press frame are identical in both configurations. Upgrading from semi-automatic to automatic involves adding PLC-controlled material dosing and automated cycle sequencing. The existing machine does not need to be replaced or structurally modified. We specify the upgrade components at the initial purchase stage so the mounting points and wiring conduits are in place from day one.
