-- Industrial Block Making Machine
Hollow Block Making Machine Qtj4-26 Concrete Brick Production Line with Motor High Efficiency
This product is currently out of stock and unavailable. SKU: Hollow Block Making Machine Qtj4-26 Concre-35644744 Category: Stationary block machine Description Additional information Description Products Description QTJ4-24 SEMI AUTOMATIC BLOCK MACHINEQTJ4-24 type block forming machine is made up of machine frame. elevating system. vibrating system. mold . material storing device. delivering device and electronic controlling […]
- European Design -- Airbag system + four vibration motors for higher block density
- Customized Solutions -- Adapted to your local raw materials & site conditions
- 320+ Engineers -- On-site commissioning, training & 24-month support
Capacity
High Output
Automation
PLC + HMI
MOQ
1 Set
Talk to Our Specialists
Products Description
QTJ4-24 SEMI AUTOMATIC BLOCK MACHINE
QTJ4-24 type block forming machine is made up of machine frame. elevating system. vibrating system. mold . material storing device. delivering device and electronic controlling part.
QTJ4-24 together with JQ350 mixer and 6m belt conveyor. makes a simple production line.QTJ4-24 type block forming machine. belongs to small size. is in stationery style with platform vibration. It adopts combination of being mechanical and electronic to finish kinds of action. The operation and maintenance are both easy and dependable.
Machine frame
The frame is dragon gate style and it is made of super steel. carrying strong resistance
to vibration and being dependable. Four vertical shafts is wear-resisting. which can guarantee the accurate position for the mold
.
to vibration and being dependable. Four vertical shafts is wear-resisting. which can guarantee the accurate position for the mold
.
Elevating system
The elevating system is made up of cone-shape motor. JZQ250 speed reducer. elevating arm. sliding sleeve. hang pin. position pin and so on.
When working. the motor drive speed reducer through V-shape triangle belt. so the lower mold .
When working. the motor drive speed reducer through V-shape triangle belt. so the lower mold .
Vibrating system
There are two parts in this vibrating system. lower platform vibration and upper platform
vibration. Lower platform vibration uses two high speed motors whose power is both 3kw to drive a vibration box with same
excitation force to vibrate vertically. Upper vibration uses an attached vibration device whose power is 1.5kw.
vibration. Lower platform vibration uses two high speed motors whose power is both 3kw to drive a vibration box with same
excitation force to vibrate vertically. Upper vibration uses an attached vibration device whose power is 1.5kw.
MOLD
Mold made up of mold box and upper mold . Upper mold and beam is located in the hole by hang pin and balance pin. making upper mold separate from mold box smoothly. Upper mold . beam and sliding sleeve are all connected with bolts.
Material storing device
It is made up of material releasing hopper and material storing hopper. Material releasing
hopper is fixed on the top of machine frame by bolts while material storing hopper is fixed below releasing hopper by bolts.
hopper is fixed on the top of machine frame by bolts while material storing hopper is fixed below releasing hopper by bolts.
Delivery device
Delivery device is made up of cycloidal pin wheel speed reducer. chains. v-shape triangle belt. delivery wheel. self-conveying frame and so on. cycloidal pin wheel speed reducer drives v-shape triangle belt to move in cycle through delivery device.
Technical parameters
Overall Dimension | 3600mm×1700mm×2560mm (working state) |
Total Mass | 1750kgs |
Molding Type | Platform Vibration |
Pallet Size | 850mm×450mm |
Overall Power | 14.25KW |
Molding | 390mm×190mm×190mm 4 pcs/mold 240mm×115mm×53mm 21 pcs/mold |
SUPPORT EQUIPMENT
QTJ4-26 block machine production line Basic Equipment- concrete mixer JQ350 pan mixer
It mix the raw materials for the blocks production. one of basic items for the production line.
QTJ4-26 block machine production line Basic Equipment- 6m belt conveyor
It transfer the raw material from mixer to the machine material hopper.
QTJ4-26 block machine production line Optional Equipment- Auto stacker
It stack the blocks layer by layer. one pallet at one time. 3-6layer according to the blocks height.
You can choose or not according to your requirement.
QTJ4-26 block machine production line Basic Equipment- Trolley
It is free as gift to our client. it is used for take the blocks layer by layer to the curing yard.
It is different if without stacker.
There are also other related equipment for the blocks production. like the block clamper. diesel generator. wheel loader. forklift. etc. You can choose or not according to your project. We can customize them for you.
Block Samples
Packing & Delivery
Company Profile
VR
Recommend Products
-- Project Inquiry
Get a Tailored Quote for Hollow Block Making Machine Qtj4-26 Concrete Brick Production Line with Motor High Efficiency
Tell us about your project -- capacity targets, raw materials, site location. Our engineers will respond within 24 hours with a complete proposal: technical spec, line layout, FOB pricing & shipping plan.
- 24-hour response with full company profile & spec sheet
- Virtual or on-site factory inspection welcome
- Flexible payment terms for government & NGO procurement
-- Related Solutions
You May Also Like
Stationary block machine
SHIYUE Factory QT18-25 Fully Automatic Pallet-free Solid Block Brick Making Machinery Production Line
View Details
Stationary block machine

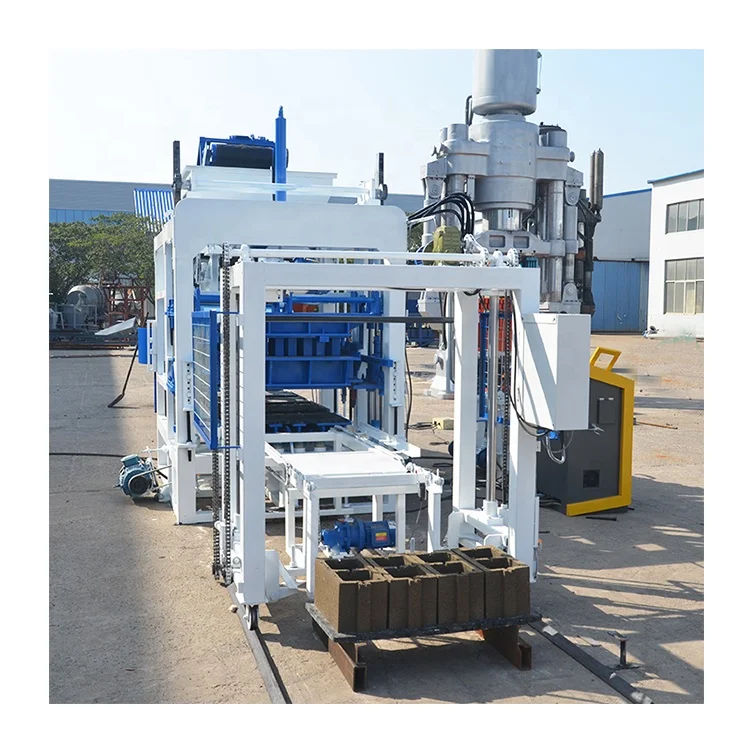

Automatic Cement Hollow Brick Production Machine QT4-15 High Efficiency High-Accuracy Block Making Machinery for Business
