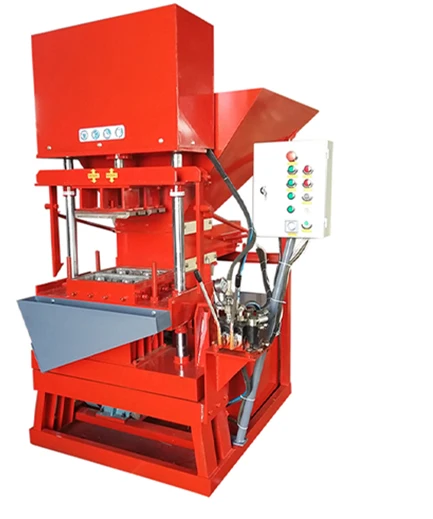

Automatic Compressed Earth Clay Brick Making Machine – PLC Control

<p><strong>Electric Powered Automatic Compressed Earth Clay Ecological Brick Making Machine</strong> with electric automatic operation configured for compressed earth and clay ecological brick production. The system balances hydraulic pressure with vibration force to match the buyer's local clay mix and moisture content, delivering batch-to-batch consistency in block density and dimensions. Automation level is selectable, allowing buyers to align labour reduction with investment budget while keeping control voltage, frequency, and PLC display language matched to the destination market.</p> <ul> <li>Machine, mould, pallet and handling specified as one matched system rather than assembled from separate suppliers</li> <li>Configuration set against the buyer's actual mix design, local aggregate and target block format</li> <li>Installation, commissioning and operator training support provided on-site</li> </ul>

View Details

Semi automatic block

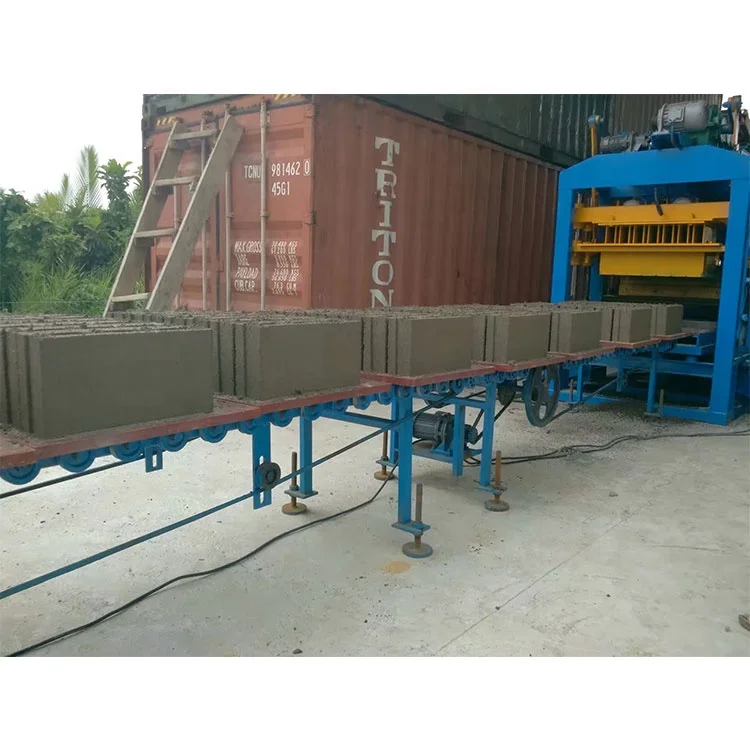

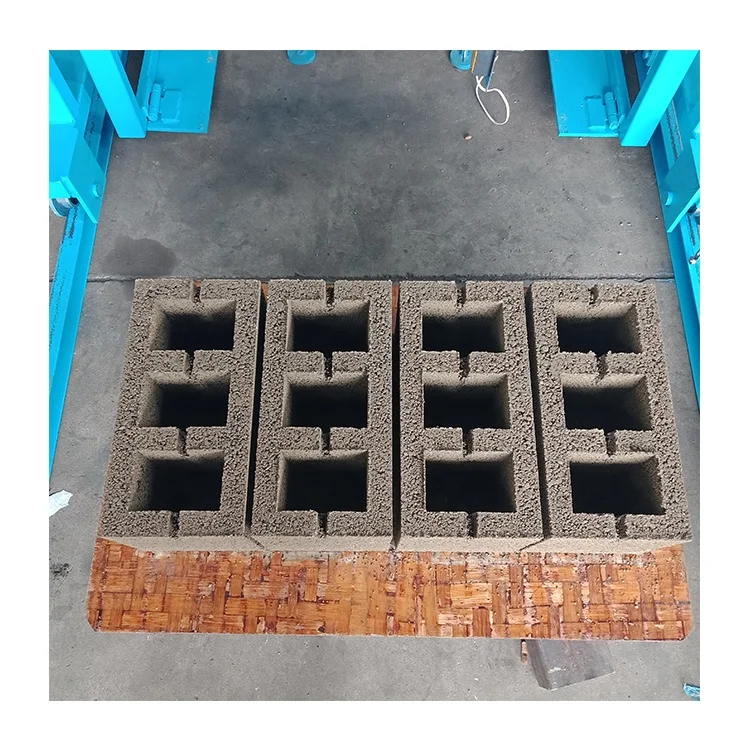

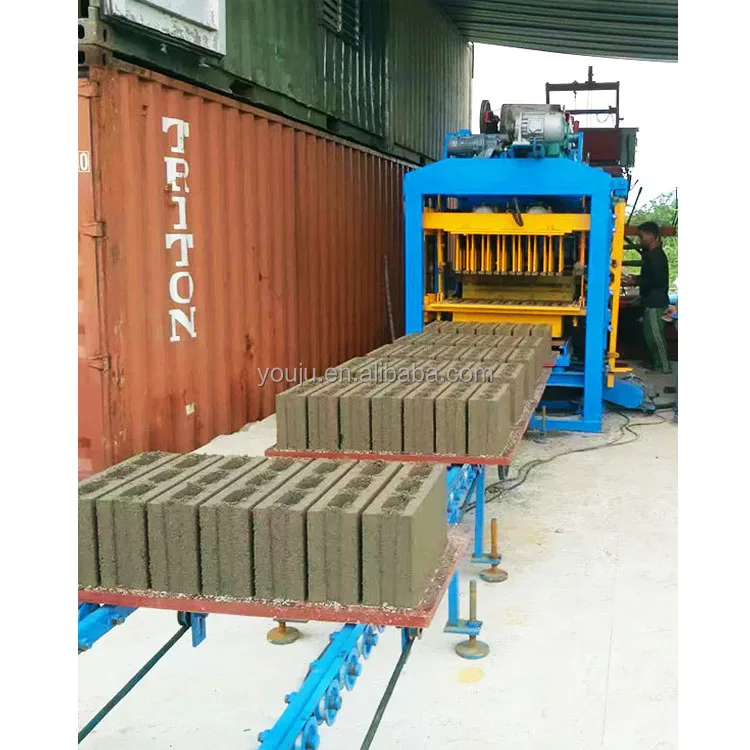

Semi Automatic Block Machine QTJ4-25 | Automatic

<p>Configuration is set against your actual raw materials and target block format, with voltage, frequency and control language confirmed before production so commissioning proceeds without delay.</p>

View Details

Semi automatic block

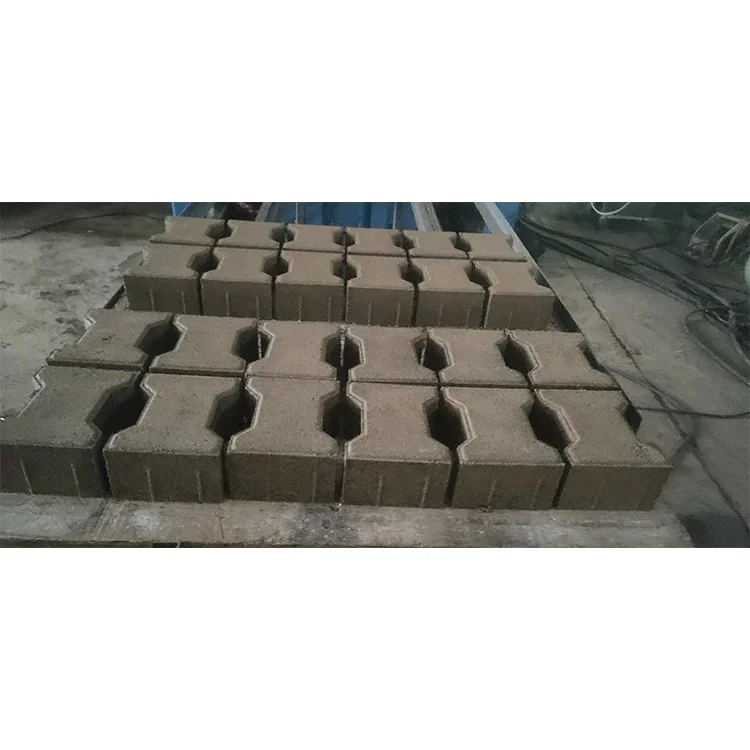

Intelligent Concrete Block Making Machine – QT5-15

<p><strong>QT5-15 Semi Automatic Block Machine, 21MPa Hydraulic Pressure, PLC Control</strong> — configured with a man-machine interface and fault diagnosis system that removes operator guesswork from every cycle. Platform vibration paired with 40KN force and 15-20s moulding cycle delivers repeatable block density across hollow blocks, pavers and porous bricks.</p> <ul> <li>Pallet size 1100×550mm, factory area 600m², total mass 6T</li> </ul> <p>Capacity, automation level and PLC language are confirmed against your actual mix design and site voltage before production begins — not assumed from a catalogue default.</p>

View Details

Semi automatic block

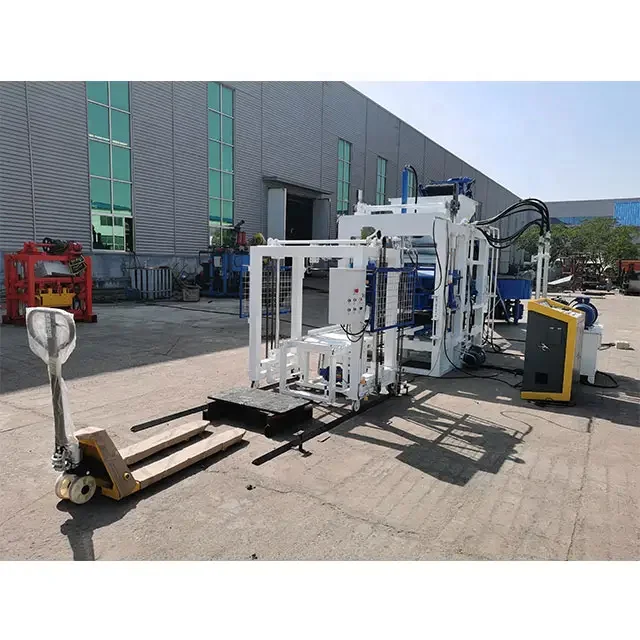

Automatic Block Cuber Machine for Concrete Block Making – PLC Control

<p><strong>QT4-18 Automatic Block Machine, 16 MPa, 27.5 kW, PLC Control</strong> — configured as one matched system from pallet feeding to block stacking, so the automation you pay for actually removes labour from the operator rather than leaving gaps the line still fills by hand.</p> <ul> <li>Schneider electrical components and frequency converter for batch-to-batch consistency</li> <li>Hydro-cylinder pallet feeder tied to the demould cycle</li> <li>Double-sided synchronous gear mold lifting for repeatable positioning</li> </ul>

View Details

Semi automatic block

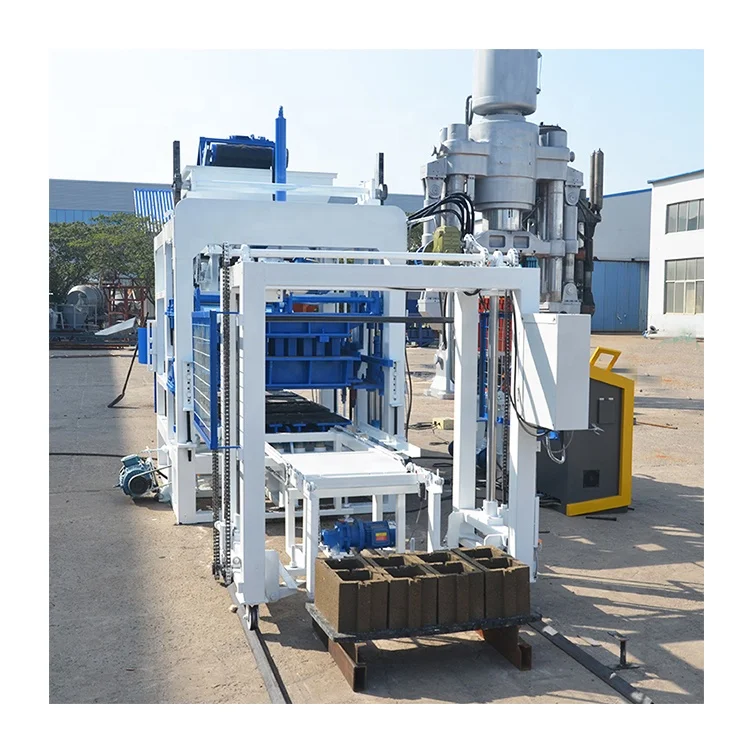

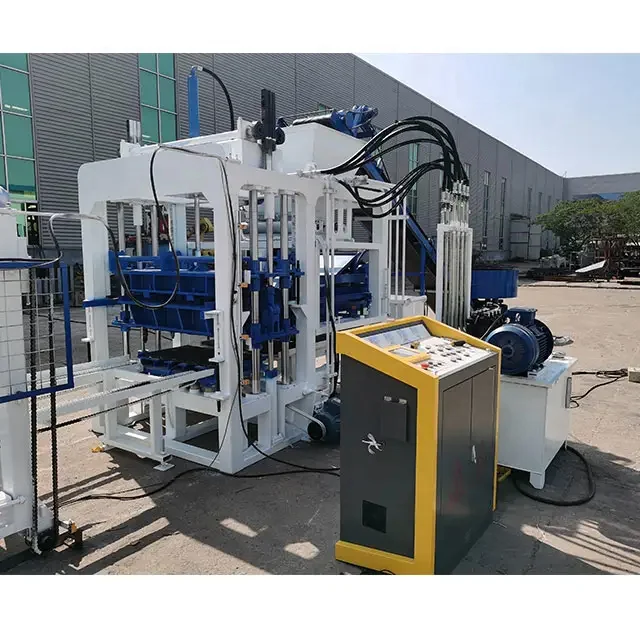

QT4-18 Concrete Block Machine for Hollow Block | Intelligent

<p><strong>QT4-18 Concrete Block Making Machine, 16Mpa Rated Pressure, PLC with Frequency Converter</strong> — configured for hollow and solid block production with double-sided synchronous gear mould lifting and hydro-cylinder pallet feeding. The control system manages cycle parameters and vibration consistency, removing operator variance from batch output while supporting a clear automation upgrade path from semi-automatic operation. Electrical schematics and PLC language confirmed before dispatch, with mould and wear parts support included.</p>

View Details

Semi automatic block

Intelligent QT6-15 Interlocking Brick Block Making Machine – Automatic

<p>Line layout and capacity calculation document provided, stating the exact block format assumed for every output figure</p>

View Details

Semi automatic block

QT6-15 Semi-Automatic Block Machine with PLC Control

<p><strong>QT6-15 Semi-Automatic Block Machine, 21 MPa Hydraulic Pressure, PLC Control, 900×700 mm Pallet</strong> — designed with a clear automation upgrade path from manual pallet handling to automatic stacking and cubing. Vibration and hydraulic pressing are matched to your mix design and local aggregate, ensuring consistent block strength across hollow block, paving brick and solid brick formats. Line layout, voltage, frequency and PLC language are confirmed before production, and automation scope is listed station by station so no output is left stacked by hand.</p>

View Details

Semi automatic block

QT4-15 Automatic Brick Machine with PLC Control – Intelligent

<p><strong>QT4-15A Automatic Concrete Block Making Machine, 16 MPa Rated Pressure, PLC Control, 1020×570 mm Pallet</strong> — integrates hydraulic pallet feeding, platform vibration and layer-by-layer stacking so the operator supervises the cycle rather than handling pallets manually.</p> <ul> <li>PLC electronic console governs molding sequence with configurable parameters per block format</li> <li>One hollow mould included; additional formats available with custom drawings matched to your local market</li> </ul> <p>Supplied as one matched system — machine, mould, pallet and handling equipment specified together, backed by factory test records and operator training support.</p>

View Details

Semi automatic block

QT4-15 Automatic Block Machine for Hollow Interlocking Paving – PLC Control

<p><strong>QT4-15 Automatic Block Machine, 16 MPa Rated Pressure, 1020×570 mm Pallet, PLC Control</strong> — configured for hollow, interlocking and paving block formats with platform vibration synchronized to hydraulic compaction. The PLC console governs pallet feed, material distribution, molding and discharge as one sequence, removing manual pallet handling for plants moving beyond semi-automatic operation. Cycle parameters are set against your actual mix design and local aggregate, not a catalogue default. Machine, mould and pallet specified as one matched system with automation upgrade path available.</p>

View Details

Semi automatic block

Automatic QT10-15 Brick Machine PLC Control for Concrete Blocks

<p><strong>QT10-15 Fully Automatic Concrete Block Making Machine, 1100×900mm Pallet, PLC Control, 44kW</strong> — platform vibration at 4500–5100 r/min paired with 21 MPa hydraulic pressure is matched to the buyer's local aggregate and mix design, while Mitsubishi PLC, Omron switches, and Schneider electrical elements ensure repeatable cycle parameters across shifts. Automation covers pallet feeding, stacking, and cubing so the operator oversees the cycle rather than handling pallets manually.</p> <ul> <li>Output per mould: 10 pcs hollow block (400×200×200mm) or 52 pcs solid brick (240×115×90mm), cycle 15–25s</li> <li>Mould heat treatment via high temperature carburizing extends wear life</li> <li>Molding area 1025×810mm with forming height 40–250mm covers pavers, kerbstones, and interlocking bricks on one press</li> </ul> <p>Configured as one matched system — machine, mould, pallet, and handling are specified together against the buyer's actual block format and site conditions.</p>

View Details

Semi automatic block

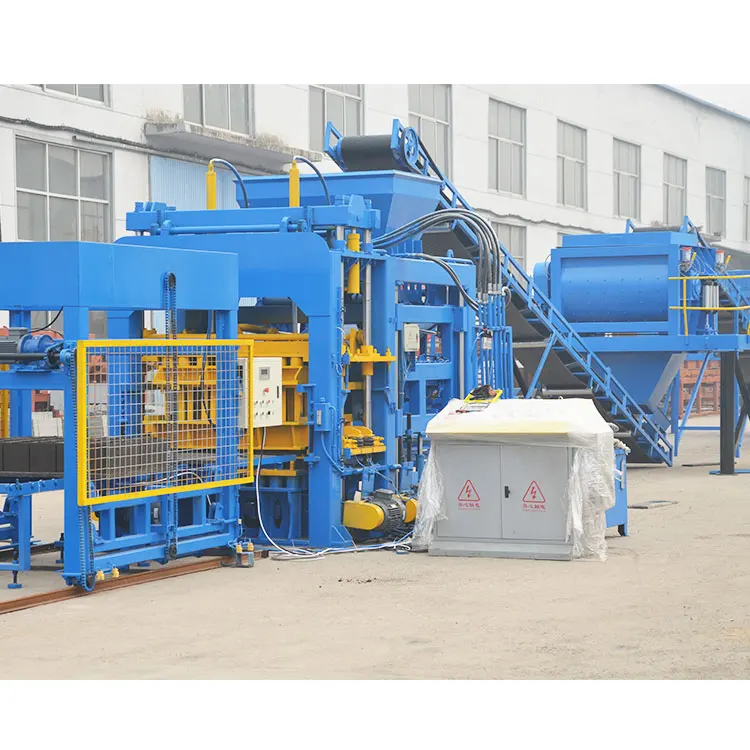

Concrete Block Making Machine QT12-15 | Intelligent

<p><strong>QT12-15 Automatic Block Making Machine, 21 MPa Hydraulic Pressure, PLC Control</strong> — platform vibration at 2800–4500 r/min with 120 kN exciting force coordinated through mechanical hydraulic synthesis. Mould change uses cartridge type welding design in carburized manganese steel, and the net wave swing feeding device ensures controlled material distribution across the 1350×850 mm pallet.</p> <ul> <li>Pairs hydraulic pressure and vibration to your mix design and local aggregate for consistent block density</li> <li>PLC manages the full press sequence from feed to demould, reducing operator dependency on cycle timing</li> <li>Configuration set against your target block format, with mould drawings and format list supplied for verification</li> </ul>

View Details

Semi automatic block

ECO 2700 Semi Automatic Clay Block Making Machine PLC Control

<p><strong>ECO 2700 Semi Automatic Clay Block Making Machine, 5.5 kW, 16 MPa Hydraulic Pressure</strong> — delivers consistent compaction and repeatable 15–20 second shaping cycles, removing operator variability from every block. Configured for your local clay mix design and target block format, not a catalogue default.</p> <ul> <li>Shaping Cycle: 15–20 seconds</li> <li>Hydraulic Pressure: 16 MPa</li> <li>Rated Power: 5.5 kW</li> <li>Voltage: 380V, 3-phase, 50Hz</li> </ul> <p>We specify machine, mould, pallet and handling as one matched system for your actual production conditions.</p>
