Automatic block machine

Automatic block machine

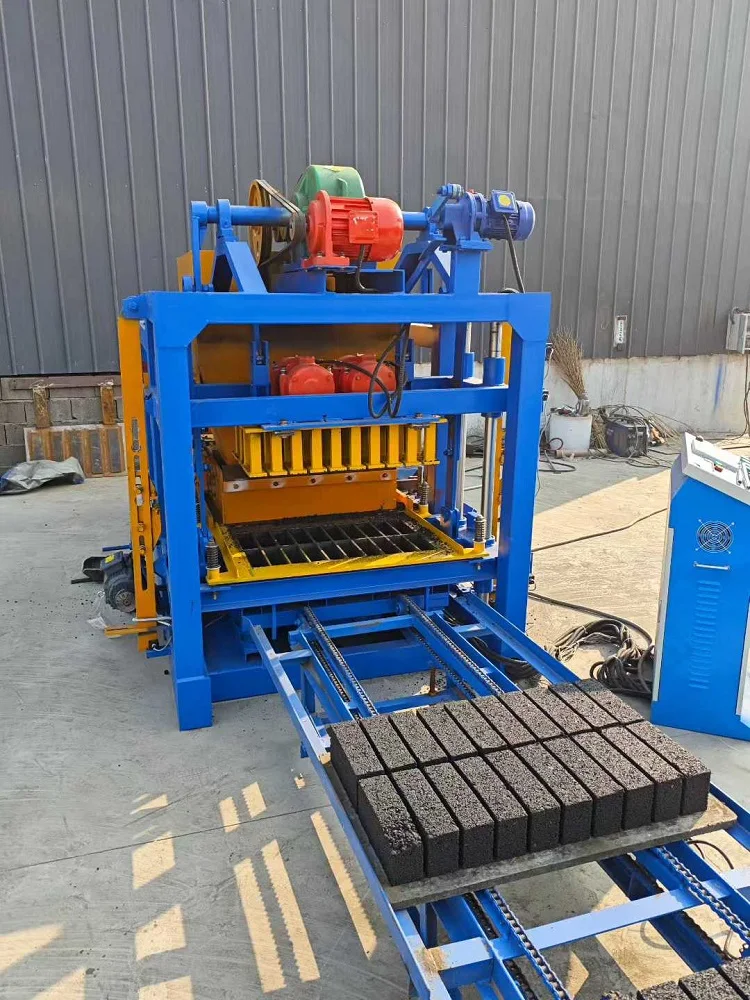

Qt4-25 Automatic Concrete Cement Hollow Block Maker Machine – PLC Control

<p><strong>QT4-25 Automatic Concrete Block Making Machine, PLC Control, 16.58 kW, Siemens Motor</strong> — fully automatic operation handles pallet feeding, material feeding, scraping, and stacking through PLC sequencing. 25-second molding cycle delivers consistent batch-to-batch output on 850×480 mm pallets. Vibration forming with reinforced steel frame suits medium-sized plants producing hollow blocks, solid bricks, and pavers.</p> <ul> <li>Voltage, frequency, and PLC display language confirmed to your site before production</li> <li>Machine, mould, and pallet specified as one matched system against your target block format and local aggregate</li> <li>Capacity calculation provided per block format, not a single catalogue figure</li> </ul>

View Details

Automatic block machine

Automatic Concrete Block Making Machine Qt4-25 | PLC Control

<p><strong>Qt4-25 Automatic Concrete Block Making Machine, PLC Control, 16.58 kW</strong> — removes manual pallet handling, material feeding and block stacking from the operator with fully automatic line integration. Vibration motor paired with thickened steel frame ensures consistent compaction across hollow blocks, solid bricks and paver formats on 850 × 480 mm pallets.</p> <ul> <li>25-second molding cycle with automatic material scraping and stacking</li> <li>Siemens motor, voltage and PLC display language confirmed before shipment</li> </ul> <p>Machine, mould, pallet and handling specified as one matched system against your actual mix design and target block format.</p>

View Details

Automatic block machine

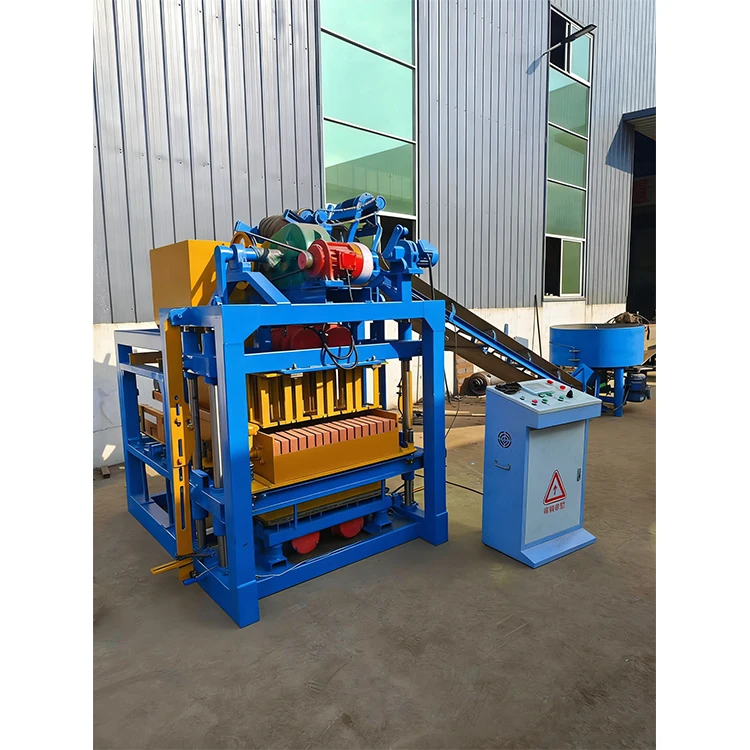

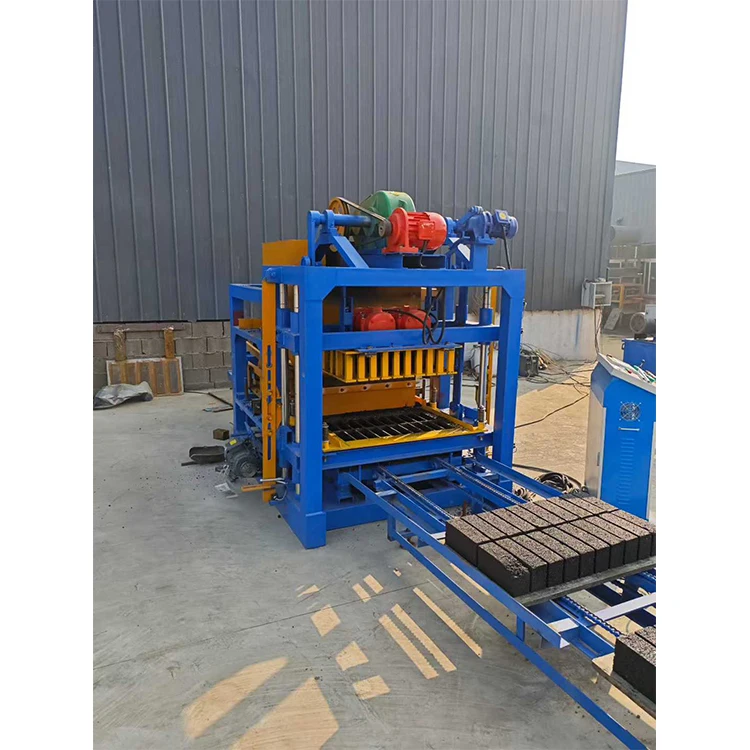

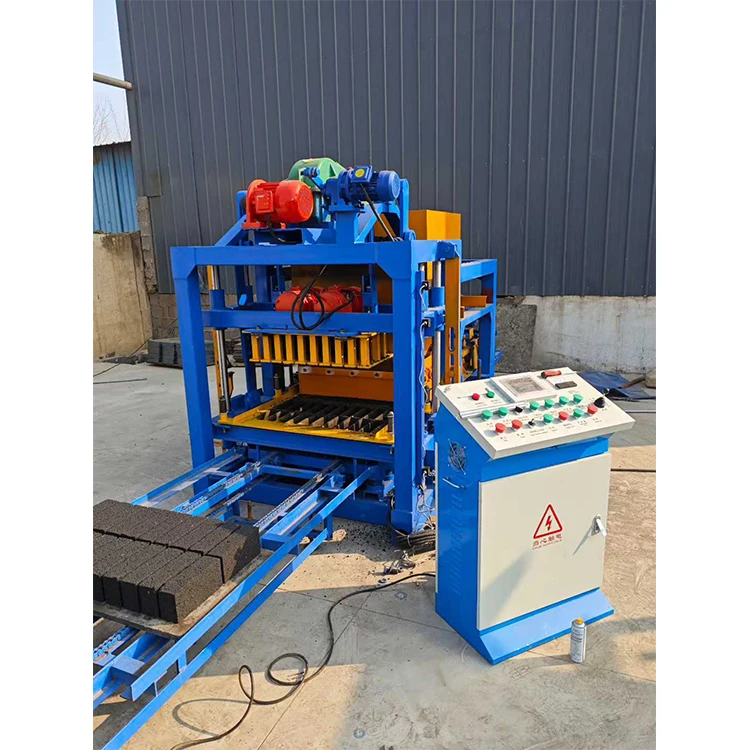

Qtj4-25 Automatic Block Machine – PLC Control

<p><strong>QTJ4-25 Automatic Block Machine, PLC Control, 850×480mm Pallet, Siemens Motor</strong> — fully automatic cycle covering pallet feeding, material scraping and block stacking through the PLC sequence. Vibration motor with large vibration box delivers uniform compaction across hollow blocks, solid bricks and pavers, with a 25-second molding cycle managed for repeatable density. Capacity confirmed per block format upon request. - Configuration matched to your local mix design and target block format, not a catalogue default - Voltage, frequency and PLC display language confirmed before production to avoid commissioning delays - Installation support with operator training and wear parts list provided for the first replacement cycle</p>

View Details

Automatic block machine

Qt4-25 PLC Control Automatic Block Making Machine for Hollow Block

<p><strong>QT4-25 Automatic Block Making Machine, PLC Control, 16.58 kW, 25s Molding Cycle</strong> — configured with automatic pallet feeding, material scraping, and block stacking to remove repetitive manual tasks from the operator. Siemens motor and thickened steel frame ensure reliable operation across continuous production cycles.</p> <ul> <li>Vibration compaction via dedicated large vibration box, delivering consistent density without hydraulic pressure</li> <li>Pallet size 850 × 480 mm — verify against your curing area and forklift before order confirmation</li> <li>PLC display language and voltage customized to your site before production begins</li> </ul> <p>Machine, mould, pallet, and handling specified as one matched system rather than assembled from separate suppliers, so every station connects without cycle-time mismatch.</p>

View Details

Automatic block machine

QTJ4-25 Automatic Block Machine with PLC Control – Intelligent18

<p><strong>QTJ4-25 Automatic Concrete Block Making Machine, PLC Controlled, 25-Second Molding Cycle</strong> — delivers full automation across pallet feeding, material scraping, and block stacking, removing manual handling and improving batch consistency. Siemens motor and thickened steel frame support sustained medium-volume shifts, while the vibration motor with large vibration box ensures strong compaction without hydraulic pressure.</p> <ul> <li>Configured as a matched system with pallet size, automation level, and control language confirmed to your site conditions</li> <li>5000 kg | 6400 × 1500 × 2700 mm | 850 × 480 mm pallet</li> </ul>

View Details

Automatic block machine

QTJ4-25 Automatic Concrete Block Machine – PLC Control

<p><strong>QTJ4-25 Automatic Concrete Block Machine, PLC Control, 25s Molding Cycle</strong> — configured for medium-sized block plants producing hollow blocks, solid bricks, and paving stones from concrete, sand, cement, and fly ash.</p> <ul> <li>Fully automatic pallet feeding, material scraping, and block stacking reduce manual intervention</li> <li>Siemens motors and vibration box compaction deliver consistent density across batches</li> <li>Thickened steel frame rated for continuous 8-hour production cycles</li> </ul> <p>Specified against your local aggregate and target block format, with PLC language and voltage confirmed before dispatch.</p>

View Details

Automatic block machine

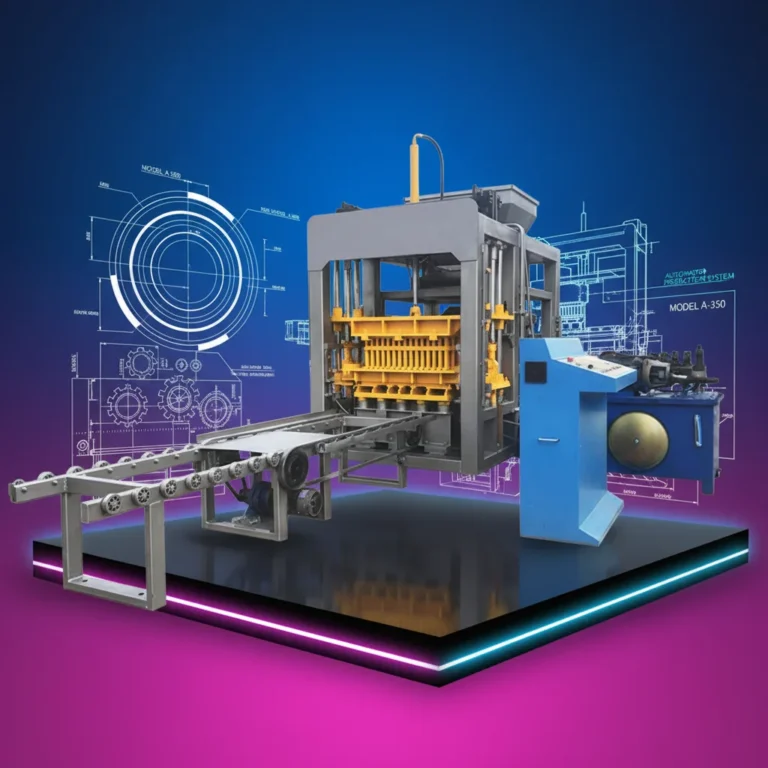

QT5-15 Automatic Block Machine with PLC Control – Intelligent

<p><strong>QT5-15 Automatic Block Machine, PLC Touch Screen, 80 kN Vibration, 1100×550 mm Pallet</strong> — configured for intelligent pallet feeding, material dosing and synchronised demoulding, removing operator-dependent variables from every cycle.</p> <ul> <li>Independent hydraulic station isolated from vibration and dust for long-term reliability</li> <li>Remote fault diagnosis via PLC keeps downtime short after commissioning</li> <li>Quick mould change system supports format switching within a single shift</li> </ul> <p>Machine, mould and handling specified as one matched system against your actual mix design and local aggregate, not assembled from separate suppliers.</p>

View Details

Automatic block machine

QT8-15 Automatic Block Making Machine | PLC Control9

<p><strong>QT8-15 Automatic Block Making Machine, PLC Control, 32 MPa Rated Pressure, 2800–4500 RPM Platform Vibration</strong> — designed for plant owners moving from semi-automatic to fully controlled operation. The touch screen HMI stores process parameters per block format, keeping vibration force and hydraulic pressure locked once matched to your mix design. Independent hydraulic station sits isolated from dust and main press vibration for consistent batch output. Configuration matched to your local aggregate and target format, with operator training and full parameter documentation provided on delivery.</p>

View Details

Automatic block machine

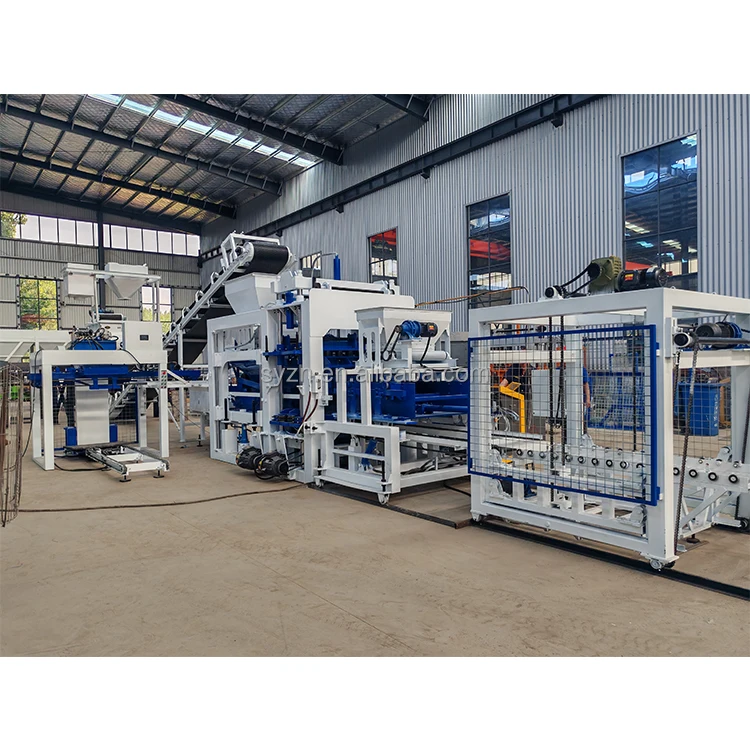

QT8-15 Hollow Block Making Machine – Automatic PLC Control

<p><strong>QT8-15 Automatic Hydraulic Block Making Machine, PLC Touch-Screen Control, 32 MPa Rated Pressure</strong> — integrated with automatic pallet feeder, block conveyor and stacker so the press never waits for manual handling. Platform vibration at 2800-4500 RPM pairs with hydraulic pressure to match your local aggregate and mix design, while the PLC stores process parameters per mould format for one-touch changeover. Pallet size 950 x 900 mm, overall power 47 kW. Backed by line-wide system matching, on-site commissioning with operator training, and dedicated mould and wear parts support.</p> <ul> <li>Control: PLC with HMI touch screen, automatic cycle sequence </li> <li>Stacker: two pallets per cycle, 3-6 layers depending on block height </li> <li>Mixer: JS750; Belt conveyor: 8 m </li> <li>Mould: one free hollow block mould included, custom formats available</li> </ul>

View Details

Automatic block machine

QT8-15 Automatic Block Machine – PLC Control

<p><strong>QT8-15 Automatic Block Machine, 21 MPa Hydraulic Pressure, 950×900 mm Pallet, PLC Touch Screen Control</strong> — the intelligent side of block production, where feeding time, vibration duration and pressure per cycle are stored and recalled by the PLC for every mould, keeping batch-to-batch density consistent across format changes. Platform vibration at 2800-4500 RPM and independent hydraulic station reduce manual guesswork and dust interference.</p> <ul> <li>Automatic stacker handles two pallets per cycle at 3-6 layers</li> <li>Manual and automatic mode selectable for gradual automation transition</li> <li>Machine, mould, pallet and handling specified as one matched system rather than assembled from separate suppliers, with configuration set against your actual mix design and local aggregate.</li> </ul>

View Details

Automatic block machine

QT4-15 Automatic Block Making Machine – PLC Control QT4-15 Automatic Block Making Machine – PLC Control

<p><strong>QT4-15 Automatic Block Making Machine, PLC Control, Multiaxis Vibration, 15-20s Cycle</strong> — configured for hollow block, paver and solid brick formats with cycle time matched to each mould. PLC automation removes manual pallet handling and stacking, ensuring batch-to-batch density consistency; hydraulic pressure and vibration force are set against the buyer's actual mix design and local aggregate.</p> <ul> <li>Capacity stated per block format, not a single headline number</li> <li>Voltage, frequency and PLC display language confirmed before production</li> <li>Mould drawing and format list provided with every quotation</li> <li>Machine, pallet and handling specified as one matched system rather than separate components</li> </ul>

View Details

Automatic block machine

QMY10-15 Automatic Mobile Block Making Machine – PLC Control

<p><strong>QMY10-15 Automatic Mobile Block Making Machine, Hydraulic Pressure, PLC Control, Siemens Motor</strong> — eliminates pallets entirely by laying blocks directly on the ground, removing pallet cost and curing-area mismatch. Hydraulic pressure and vibration are matched to your local aggregate and mix design for consistent block density, while heat-treated moulds extend stable working life across format changes.</p> <ul> <li>15–20s cycle time on hollow block formats with full-automatic PLC operation</li> <li>On-site production for contractors and first-plant entrepreneurs without fixed infrastructure</li> </ul> <p>Supplied as one matched system — machine, mould and handling specified together, with operator training and ongoing wear parts support included.</p>
