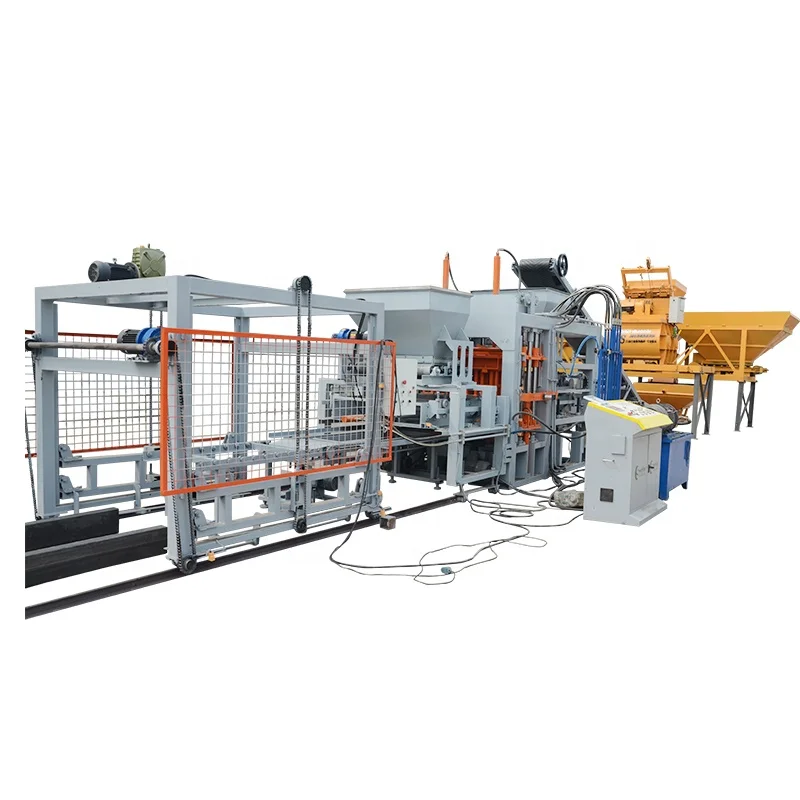

QT7-15 Automatic High Capacity Hydraulic Hollow Block Making Machine with Engine & Motor for Concrete & Cement Bricks
Warranty
24 Months
Shipping
1-3 Days
Export to
108+ Countries
Stationary block machine
-- Industrial Block Making Machine

QT7-15 Automatic High Capacity Hydraulic Hollow Block Making Machine with Engine & Motor for Concrete & Cement Bricks

This product is currently out of stock and unavailable. SKU: QT7-15 Automatic High Capacity Hydraulic H-35644837 Category: Stationary block machine Description Additional information Description Product Description 1) The motor for the host machine is Germany SIEMENS brand or CE standard brand 2) Control PLC: we select the original Siemens PLC combine with an independently develop […]

  • European Design -- Airbag system + four vibration motors for higher block density
  • Customized Solutions -- Adapted to your local raw materials & site conditions
  • 320+ Engineers -- On-site commissioning, training & 24-month support
Capacity
High Output
Automation
PLC + HMI
MOQ
1 Set
Get Engineering Quote WhatsApp Us
Talk to Our Specialists
BG
Byran Guo
+86 156 5020 7099
SX
Simon Xu
+86 134 6820 1142

Product Description


1) The motor for the host machine is Germany SIEMENS brand or CE standard brand 2) Control PLC: we select the original Siemens PLC combine with an independently develop machine control program. assure stable and high-efficiency working status 3) The Travel switch will use the France Schneider brand and Japan Omron 4) Mould: newest heat treatment device and carburizing treatment will assure a longer mold life span and ensure mold strength reaches 54-58 HRC so that the mold can be used more than 100 thousand times.5)Material and welding: all materials and spare parts are selected according to international CE standards. Carbon dioxide protection welding will assure the whole line stable running.
Specification and Production
QT7-15 Automatic Block Making Machine Technical Parameters


1
Dimension of host machine
3200x2300x2750MM
2
Weight of host machine
6 Tons
3
Molding area
1150*700mm
4
Workshop area
200?O
5
Host machine power
45KW
6
Vibration force
100KN
7
Pallet size
1150*700*25mm
8
Voltage
220/380/415/440V(Customized)
9
Molding period
15 Seconds
10
Vibration method
Hydraulic+Platform Vibration
11
Vibration frequency
2800- 4500 Times/Minute
common blocks capacity and samples
Grouped Equipments
This line includes one QT7-15 BrickMachine with Pallet feeder and brick receiver. Hydraulic station.PLD1200 batching Machine .JS500 Mixer.Conveyor belt.hydraulic trolley If you produce color pavers. just add color feeding system.
PLD1200 Batching Machine
1.Weigh-batching hopper capacity:1200L2.Storage hopper capacity:4*2.5m33.Theoretical Productivity:56m3/h4.Ingredient precision:±2%5.Min Weight :3000KGS6.Batching species: 37.Height of Adding Material: 2.8mm8.Belt speed :1.25m/s9.Weight :4500kgs10.Dimensions:12000×2200×2500mm

JS500 Concrete Mixer
1.Charging volume:800L2.Discharging volume:500L3.Production capacity:25m3/h4.Electric motor power for mixing:18.5kw5.Electric motor power for windlass:5.5kw6.Water pump power:0.75kw7.Maximum grain sizes of aggregate:60mm8.Weight of the whole machine:2800Kg9.Overall dimension(L*W*H):4490*3030*5280mm




Block Machine Stacker

(1)Model: SY-4 stacker
(2)Power: 3KW
(3)Mobile pallet stack
(4)Suitable for hollow block and pavers (5)Weight: 600KGS
Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine.
*Training how to use the machine.
* Engineers available to service machinery overseas.

Packing & Delivery


Steel wire and strap fixing


The normal package is nude or with plastic film. or pack it according to customers special request.
customer working site
