SHIYUE QT8-15 Brick Manufacturer Concrete Brick Block Making Machine
This product is currently out of stock and unavailable. SKU: SHIYUE QT8-15 Brick Manufacturer Concrete -35655059 Category: Automatic block machine Description Additional information Description Products Description QT8-15 BLOCK MACHINEThis equipment QT8-15 Block Molding Machine is mechanical hydraulic PLC controlled synthesis technique equipment. Its characteristic is high efficient. easy-operated and easy-maintained. Block molding mainly by hydraulic […]
- European Design -- Airbag system + four vibration motors for higher block density
- Customized Solutions -- Adapted to your local raw materials & site conditions
- 320+ Engineers -- On-site commissioning, training & 24-month support
Capacity
High Output
Automation
PLC + HMI
MOQ
1 Set
Talk to Our Specialists
Products Description

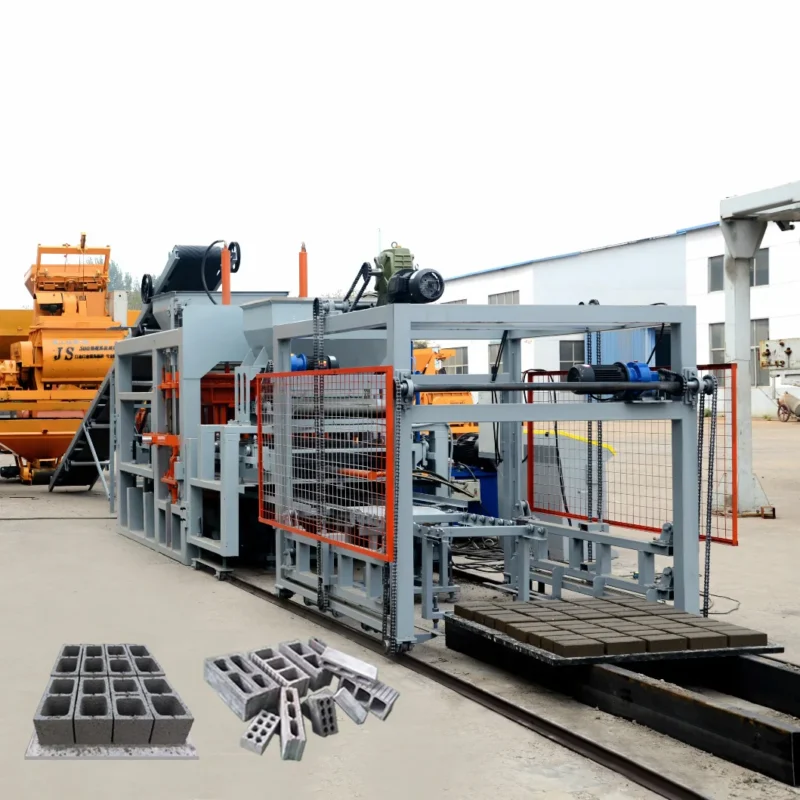

QT8-15 BLOCK MACHINE
This equipment QT8-15 Block Molding Machine is mechanical hydraulic PLC controlled synthesis technique equipment. Its characteristic is high efficient. easy-operated and easy-maintained. Block molding mainly by hydraulic press. mechanical to assist. vibrate and press to finish molding blocks. The comprehensive strength of finished blocks can reach 15 Mpa. compactness is high. impermeability and freeze resistance is better. and excellent capacity of sound insulation. heat insulation. insulation.external dimensions are precise. the blocks are more consistency with low waster rate.
It is mainly composed of pallet feeder. host machine. block conveyor. hydraulic station and PLC controller.
SHIYUE QT8-15 Brick Manufacturer Concrete Brick Block Making Machine
QT8-15 BLOCK MOLDING MACHINE
SHIYUE QT8-15 Brick Manufacturer Concrete Brick Block Making Machine
FEATURES:High degree of automation. intelligent electronic control. automatic process is controlled by advanced PLC (Programmable Controller). input and store of process data and touch screen. it have ideal of flexible Human Conversation Interface. Good reliability. Hydraulic system choosing improved technology and perfected workmanship of design. Use independent integrated type hydraulic station. Avoid influence of dust and main machine vibration for hydraulic system. Make sure process reliability of hydraulic system.The machine is well-adapted. It can produce different blocks by changing mould. maximal degree cater to marketplace. Plays a mechanical maximum functionality.
SHIYUE QT8-15 Brick Manufacturer Concrete Brick Block Making Machine
SHIYUE QT8-15 Brick Manufacturer Concrete Brick Block Making Machine
PLC controllerControl system include PLC control box. expand parts. touch screen human-computer interface. intermediate relay. exchange contactor and so on. all parts can work in manual or automatic type. For example. the press head up and down mold box working. material box working. vibrate. molding. demolding. pallet go and back all can control automatically. And can adjust the feeding times and vibration time.Control parts include indicator light. control button. programmable operation panel. Through control the electric component. can know the machine situation. it can transition between manual mode and automatic mode. When changing the technical parameter. or there’s problem about the machine. should cut down electric in time. make sure the machine and person safe. SHIYUE QT8-15 Brick Manufacturer Concrete Brick Block Making Machine
Main technical parameters
SHIYUE QT8-15 Brick Manufacturer Concrete Brick Block Making Machine | ||
Dimension | 8300 x 1860 x 3000 mm | |
Rated Pressure | 21 Mpa | |
Vibration Form | Platform Vibration | |
Pallet Size | 950 x 900 mm | |
Molding Cycle | 15-25s | |
Overall Power | 37 KW | |
Vibration Frequency | 2800-4500RPM | |
common blocks samples
loading and delivery
