YJ Automatic Paver Brick Making Machine QT12-15 Building Hollow Concrete Cement Brick Block Maker Machine Hydraulic Press Blocks
This product is currently out of stock and unavailable. SKU: YJ Automatic Paver Brick Making Machine QT-35654725 Category: Automatic block machine Description Additional information Description Products Description QT12-15 CEMENT BLOCK MAKING MACHINEYJ Automatic Paver Brick Making Machine QT12-15 Building Hollow Concrete Cement Brick Block Maker Machine Hydraulic Press BlocksSTRUCTURE:QT12-15 type hollow block making machine adopts […]
- European Design -- Airbag system + four vibration motors for higher block density
- Customized Solutions -- Adapted to your local raw materials & site conditions
- 320+ Engineers -- On-site commissioning, training & 24-month support
Capacity
High Output
Automation
PLC + HMI
MOQ
1 Set
Talk to Our Specialists
Products Description
QT12-15 CEMENT BLOCK MAKING MACHINE
YJ Automatic Paver Brick Making Machine QT12-15 Building Hollow Concrete Cement Brick Block Maker Machine Hydraulic Press Blocks
STRUCTURE:
QT12-15 type hollow block making machine adopts gantry frame type structure. made by super super steel. strong and shock resistant. very reliable. The design adopts the driving type material storage mode with independent foundation. to send the material when it is needed at once. Net wave swing type of material feeding device. with good feeding effect. Cartridge type welding mold.adopts qualified manganese steel by carburizing and quenching.no transformation and no damage after using 100000 times. It can make the simple production line with PL1200 batching machine. JS500 or JS750 mixer. 8m conveyor belt and stacker.YJ Automatic Paver Brick Making Machine QT12-15 Building Hollow Concrete Cement Brick Block Maker Machine Hydraulic Press Blocks
QT12-15 Auotmatic Block Making Machine
YOUJU Concrete Interlock Brick Machine QT12-15 Cement Paving Blocks Production Line Automatic Fly Ash Block Making Machinery
QT12-15 cement block making machine is mechanical hydraulic PLC controlled synthesis technique equipment. Its characteristic is high efficient. easy-operated and easy-maintained. Block molding mainly by hydraulic. machinery as sideline. vibrate and press to finish molding blocks. The compressive strength of all blocks more than 15 MPa. compactness is high. impermeability and freeze resistance is better. and excellent capacity of sound insulation. heat insulation. insulation. external dimensions are precise.
Technical parameters
YJ Automatic Paver Brick Making Machine QT12-15 Building Hollow Concrete Cement Brick Block Maker Machine Hydraulic Press Blocks | ||
Overall Size | 9350 x 2520 x 2950 mm | |
Rated Pressure | 21 Mpa | |
Main Vibration Form | Platform Vibration | |
Vibration Frequency | 2800-4500(r/min) | |
Vibration Acceleration | 15-20 g | |
Exciting Force | 120 KN | |
Fixed Brick Height | 50-200 mm | |
Pallet Size | 1350 x 850 mm | |
Molding Cycle | 15-25 s | |
Feeding Device Volume | Storage Hopper Volume 0.4m3 | |
Feeding Device Volume 0.31m3 | ||
Total Power | 50.7 kw | |
Total Weight | 12000 kgs | |
common blocks capacity and Block samples
YOUJU Concrete Interlock Brick Machine QT12-15 Cement Paving Blocks Production Line Automatic Fly Ash Block Making Machinery | ||||||||||
Item | Size (L x W x H) | Quantity / mould | The theoretical productivity | |||||||
Molding cycle | Per hour | Per day(8h) | ||||||||
Hollow block | 390×190×190 | 12pcs | 20-25 s | 1720 – 2160pcs | 13700 – 17200pcs | |||||
Porous block | 240×115×90 | 35pcs | 20-25 s | 5040 – 6300pcs | 40300 – 50400pcs | |||||
Standard block | 240×115×53 | 62pcs | 15-17 s | 13100 – 14800pcs | 105000- 119000pcs | |||||
customer working site
Packing & Delivery
Recommend Products
VR
-- Project Inquiry
Get a Tailored Quote for YJ Automatic Paver Brick Making Machine QT12-15 Building Hollow Concrete Cement Brick Block Maker Machine Hydraulic Press Blocks
Tell us about your project -- capacity targets, raw materials, site location. Our engineers will respond within 24 hours with a complete proposal: technical spec, line layout, FOB pricing & shipping plan.
- 24-hour response with full company profile & spec sheet
- Virtual or on-site factory inspection welcome
- Flexible payment terms for government & NGO procurement
-- Related Solutions
You May Also Like
Automatic block machine

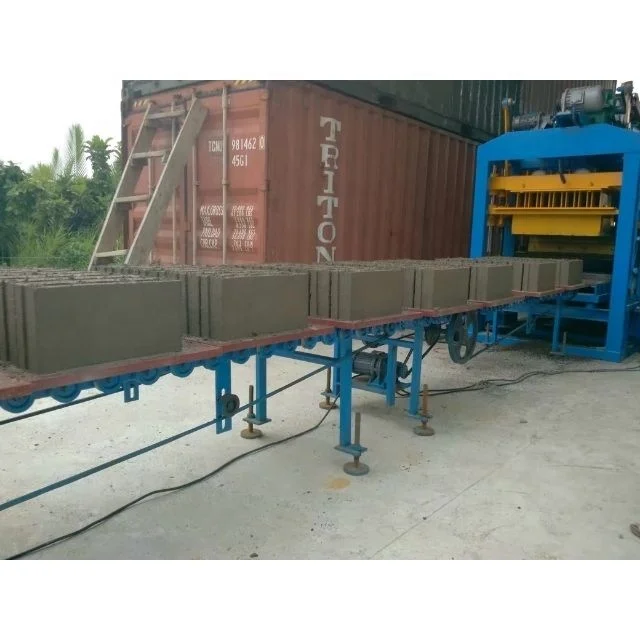

QTJ4-25 Concrete Cement Hollow Block Brick Making Machines Multifunctional Paving Brick Making Machine
