Description

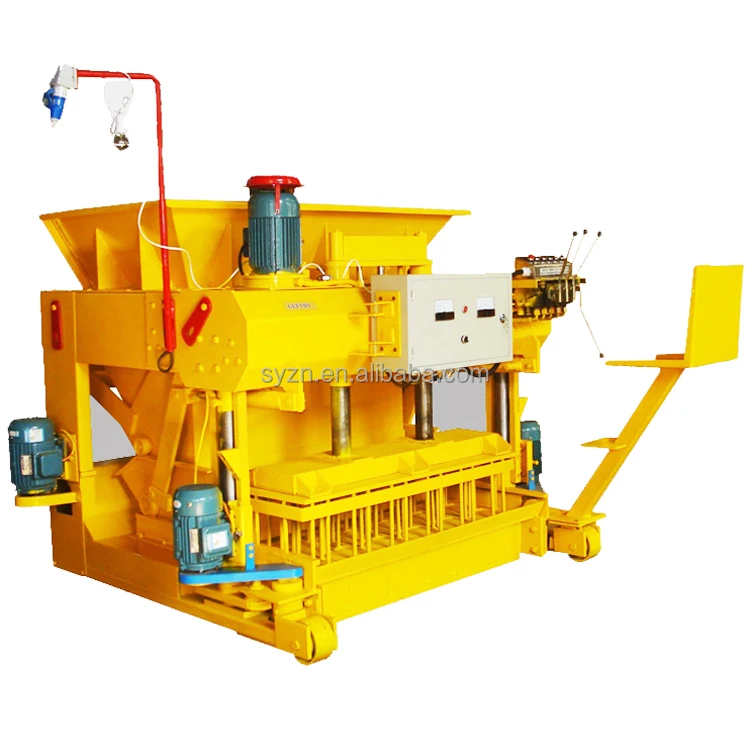

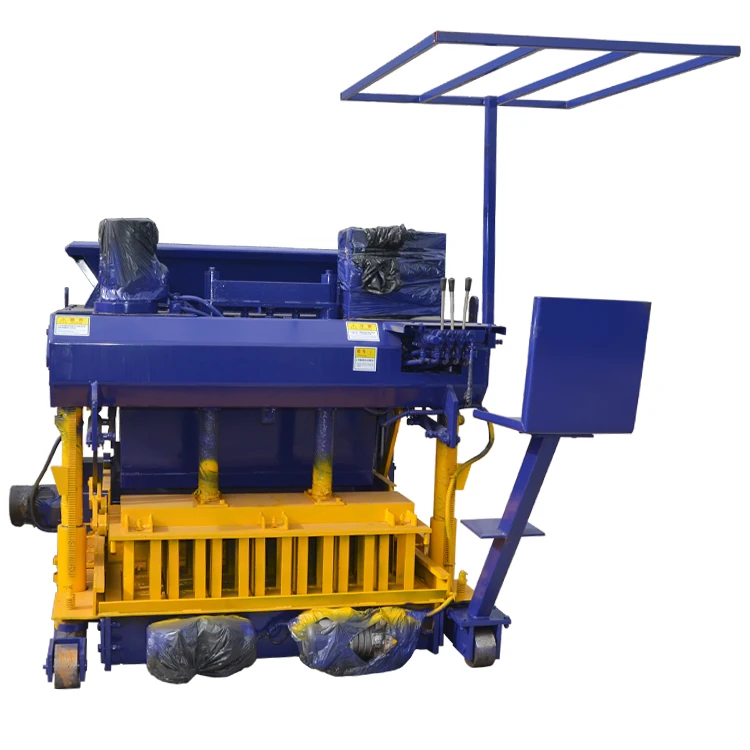

Intelligent control matched to your block format — Every QMY6-25 mobile egg laying block machine is specified against your actual mix design, target block format, and local aggregate, so cycle times and compaction forces are validated before the machine ships.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | QMY6-25 |
| Product Type | Mobile Egg Laying Block Making Machine |
| Molding Capacity | 6 pcs/mold (basis not stated in source — confirm block format) |
| Molding Cycle | 20s–25s (basis not stated in source — confirm block format) |
| Hydraulic Pressure | 16 MPa |
| Vibration Form | Mold Vibration |
| Turning Method | Hydraulic |
| Total Power | 9.6 kW |
| Total Mass | 2.5 Tons |
| Pallet Requirement | No pallet required (egg laying type) |
| Automation Level | Manual operation (one person operable) |
| Mixer Options | JS500 double shaft mixer / JQ500 pan mixer / JQ750 pan mixer |
| Basic Configuration | QMY6-25 host machine, JS500 mixer, Dump truck |
| Optional Configuration | PLD800 batching machine, Cement silo, Screw conveyor, Loading machine |
| Voltage & Frequency | Configurable to destination country standards |
| Mould Format | Customizable for hollow blocks and large solid blocks |
| Stacking Method | Manual (optional block clamper available) |
Application Suitability
| Application | Material or Output |
|---|---|
| On-site block production for construction contractors | Hollow blocks and large solid blocks from crushed stone, sand, and cement |
| First block plant setup by entrepreneurs | Standard concrete blocks at small-scale output volumes |
| Remote or developing region factories | Concrete masonry units using locally available aggregates |
| Overflow capacity for existing block plants | Supplementary production at project sites without fixed infrastructure |
Why the Voltage Question Should Come Before the Price
Confirming voltage, frequency, and control language before production prevents costly commissioning delays on site.
I have watched machines sit idle for weeks at project sites because the control panel labels and PLC display language did not match what the local operators could read, or because the electrical cabinet was built for a frequency standard that did not exist at the destination. The QMY6-25 as a PLC controlled egg laying block machine must be configured against the actual grid conditions where it will run, not a default assumption. [NEED_CITE: voltage and frequency standards by export market]
How Intelligent Hydraulic Control Maintains Cycle Consistency
The QMY6-25 uses a hydraulic turning method combined with mold vibration to compact each block. When the vibration force and hydraulic pressure are matched to your specific mix design, the machine produces blocks with consistent density cycle after cycle. This automatic mobile block machine removes operator-dependent variation from the compaction process, so the difference between the first block of the morning and the last block before shutdown stays within dimensional tolerance.
Removing Pallet Circulation From the Workflow

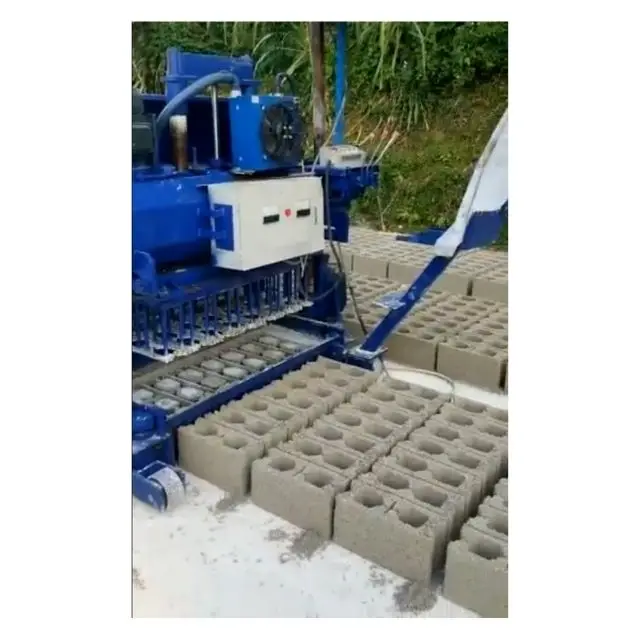

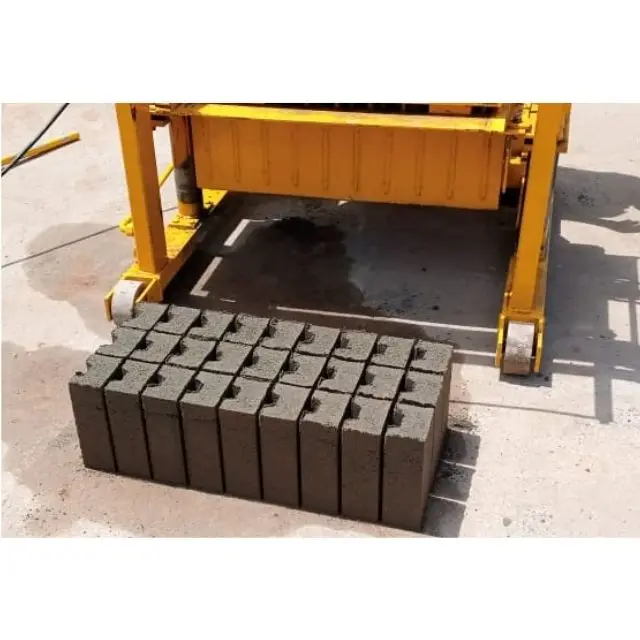

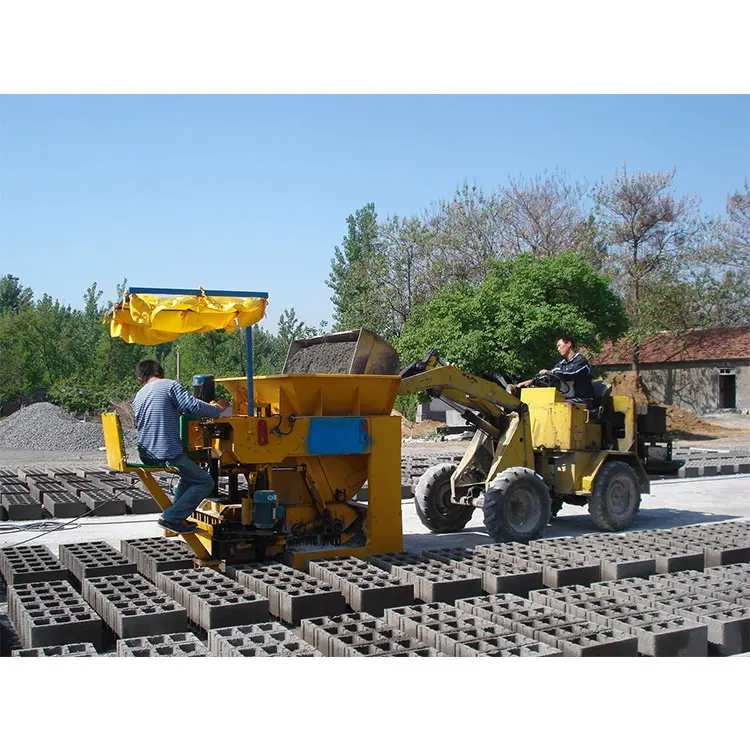

Egg laying operation means the machine deposits blocks directly onto the ground or a prepared curing surface. No pallets are required, which eliminates pallet feeding, pallet return, pallet storage, and the labor associated with pallet handling. For a mobile setup at a remote project site, this reduction in peripheral equipment means fewer components to transport, maintain, and replace. The trade-off is that ground surface preparation becomes critical — the curing area must be level and firm enough to accept freshly formed blocks without deformation.
Reading the Specification Sheet Against Your Local Aggregate
The 16 MPa hydraulic pressure rating and mold vibration form work together to determine the final block density and compressive strength. If your local aggregate is a coarse crushed stone with larger particle size, the vibration duration and pressure application may need adjustment compared to a fine sand mix. The 20s–25s molding cycle range (basis to be confirmed for your specific block format) provides a starting window, but actual cycle time depends on the material’s response to compaction. A mix that requires longer vibration to achieve full densification will extend the cycle and reduce throughput per shift. [NEED_CITE: aggregate gradation effects on concrete block compaction]
The 9.6 kW total power draw reflects a machine designed for sites with limited electrical infrastructure. When selecting mixer options — JS500 double shaft, JQ500 pan, or JQ750 pan — the combined power requirement must fit within your site’s available supply, including starting current for the largest motor.
What Happens When Configuration Is Skipped
Machines configured for a standard sand mix that arrives at a site with only coarse gravel aggregate will under-compact. Blocks may collapse after demolding because the vibration force and duration were never adjusted for the material actually available. [NEED_CITE: concrete block failures from mismatched mix design and vibration parameters]
If voltage and frequency are assumed rather than confirmed, motors can overheat, contactors can fail prematurely, and the control system may not initialize at all. The cost of a rewound motor or a replacement control board at a remote site far exceeds the time needed to verify electrical specifications before the machine leaves the factory.
When pallet handling and stacking requirements are not discussed upfront, buyers discover after delivery that blocks must be stacked manually — a labor cost that was never factored into the project budget.
Why Buyers Source This Machine Through Shiyue
Block machinery is our single focus, which means the QMY6-25 host machine, mixer, and optional batching equipment are specified as a matched system rather than sourced from separate vendors with mismatched cycle times. We configure each machine against the buyer’s actual mix design and target block format, not a catalog default, so the molding cycle and hydraulic pressure are validated for your material before shipment.
Mould design is handled in-house for the hollow block and large solid block formats your market actually sells, including custom drawings when standard formats do not match. The automation level is selectable — you can start with the basic one-person manual operation and add a block clamper or batching machine later as production volume grows.
Installation and commissioning support includes operator training so the crew understands how to adjust vibration time and hydraulic parameters when switching between mix batches or aggregate sources.
Documentation & Verification
- Machine specification sheet stating molding capacity per confirmed block format and mix design
- Voltage and control language confirmation document matched to your destination country electrical standards
- Factory test record demonstrating cycle time consistency and block dimensional accuracy across multiple runs
- Hydraulic and electrical schematic for on-site troubleshooting and spare parts identification
- Mould drawing and format list confirming cavity count and block dimensions for each mould supplied
- Operation and maintenance manual in the confirmed display language
Installation, Commissioning & Support
- Foundation preparation guidance based on the 2.5 ton total mass and egg laying ground surface requirements
- Electrical connection specifications for the 9.6 kW total power draw at your confirmed voltage and frequency
- Mixer pairing verification ensuring the selected JS500 or JQ unit does not exceed site power capacity
- On-site commissioning with vibration time and hydraulic pressure adjustment to your local aggregate
- Operator training covering mould change procedure and block format switching
- Wear parts list with replacement intervals for hydraulic seals and vibration components
What to Include With Your Inquiry
Provide your target block format with dimensions, the local aggregate type and maximum particle size, and your available site voltage and frequency. Include the curing area dimensions and ground surface type so pallet-free operation can be planned correctly. If you have existing mixing or material handling equipment, note the model and capacity so the QMY6-25 can be integrated without duplication.
Frequently Asked Questions
Q: How does the control system maintain cycle consistency across different operator skill levels?
A: The hydraulic turning and mold vibration sequence runs on a fixed timing cycle, so compaction force and duration do not depend on the operator’s judgment. Once the vibration time and pressure are set during commissioning for your specific mix, every cycle repeats those parameters regardless of who is operating the machine.
Q: What PLC language options are available and can display text be customized to local requirements?
A: The control display language is confirmed before production to match your operator team’s primary language. The PLC interface labels, alarm messages, and parameter screens are all set in the confirmed language so operators can read cycle status and troubleshoot without translation.
Q: How do I confirm the machine’s electrical configuration matches my site’s voltage and frequency supply?
A: Provide your site’s voltage, phase configuration, and frequency with your inquiry. The electrical cabinet is built to those exact specifications, and a confirmation document is issued before production so you can verify the configuration matches your grid before the machine ships.
Q: What automation upgrades are available if I start with basic configuration and expand later?
A: The basic QMY6-25 setup supports manual one-person operation. You can add a PLD800 batching machine for more consistent raw material proportioning, a cement silo with screw conveyor for bulk cement handling, or a block clamper for faster stacking — each added independently as your production volume grows.
Q: How does the hydraulic control system adapt vibration force to different mix designs and aggregate types?
A: During commissioning, the vibration duration and hydraulic pressure are adjusted to match your local aggregate gradation and cement content. Coarser materials may require longer vibration to achieve full compaction, while finer sands compact more quickly. These parameters are then locked into the cycle for consistent production.
