SY Cement Interlock Paver Brick Machine QMR4-45 Diesel Engine Mobile Concrete Hollow Block Making Machine Sale in Congo Ghana
This product is currently out of stock and unavailable. SKU: SY Cement Interlock Paver Brick Machine QM-35644468 Category: Mobile block machine Description Additional information Description Products Description QMR4-45 MOBILE BLOCK MACHINEQMR4-45 Mobile Diesel Engine multi functional brick making machine Advance technology:advanced design. structure is reasonable. it uses excitation mold box. hydraulic transmission. automatic transmission. Manual […]
- European Design -- Airbag system + four vibration motors for higher block density
- Customized Solutions -- Adapted to your local raw materials & site conditions
- 320+ Engineers -- On-site commissioning, training & 24-month support
Capacity
High Output
Automation
PLC + HMI
MOQ
1 Set
Talk to Our Specialists
Products Description

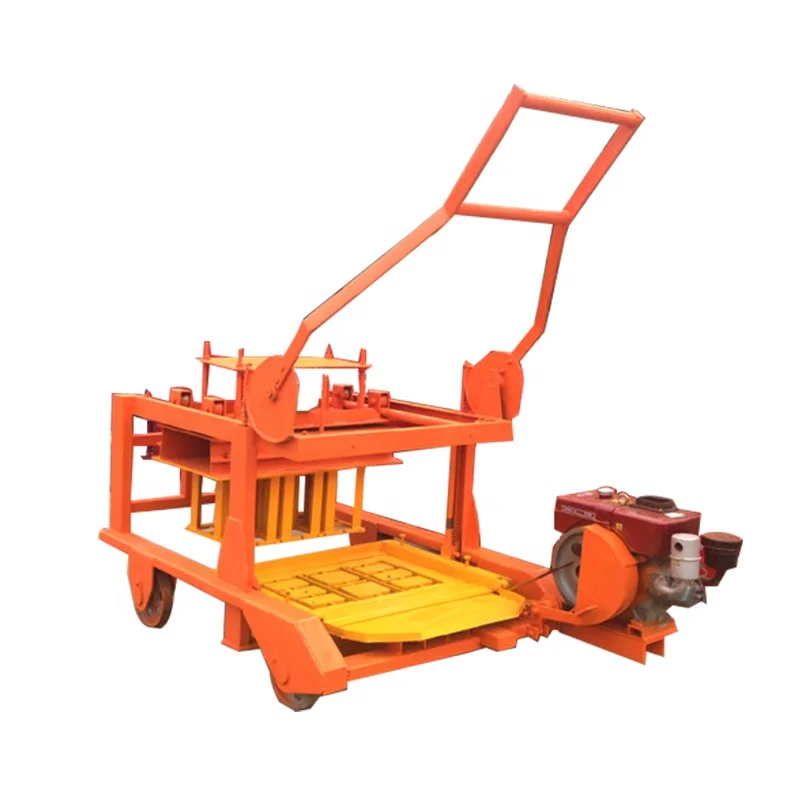

QMR4-45 MOBILE BLOCK MACHINE
QMR4-45 Mobile Diesel Engine multi functional brick making machine
Advance technology:advanced design. structure is reasonable. it uses excitation mold box. hydraulic transmission. automatic transmission. Manual Transmission. move forward. move back. corner. etc advanced technology.small volume. high output. agile operation. low Energy high-efficiency.
High quality:choosing high quality steels. good welding technique. hydraulic system includes excellent fittings from Taiwan. which makes machine durable long service life: precision spare parts prolong service life.
SY Cement Interlock Paver Brick Machine QMR4-45 Diesel Engine Mobile Concrete Hollow Block Making Machine Sale In Congo Ghana
SY Cement Interlock Paver Brick Machine QMR4-45 Diesel Engine Mobile Concrete Hollow Block Making Machine Sale In Congo Ghana
Production step
1.Initialization??)Rise mould to push to back.2)Drop mould to ground.2.Operation??)Mix material .make it to down mould box.
2)Turn on vibratory motor.use handle to make mate rial ordered to mold box.3)Put top mold to above of down mold and push handle to make brick out of mold.make top mold pressure head goes into down mold box after top mold
4)press over.stop vibrate .turn on oil pump motor.flare off reversing handle .down mold rises .
5)brick go out of mold brick moves forward and stop automatically. pushing reversing handle . make down mold goes to ground . push top mold to back .put material to hopper again .return to step A .recycled.
SY Cement Interlock Paver Brick Machine QMR4-45 Diesel Engine Mobile Concrete Hollow Block Making Machine Sale In Congo Ghana
block Machine main technical Parameter
SY Cement Interlock Paver Brick Machine QMR4-45 Diesel Engine Mobile Concrete Hollow Block Making Machine Sale In Congo Ghana | ||
Dimension | 1300 x 1500 x 1000 mm | |
Total Mass | 950kgs-1000kgs | |
Hydraulic Method | Mold Vibration | |
Exciting Power | 28.6KN | |
Excitation Frequency | 4500(r/min) | |
Total Power | diesel engine | |
Molding Cycle | 30 s | |
Capacity | 3000 pcs/day(8hours) | |
Raw Material | concrete. sand.cement. fly ash. lime. gypsum.etc | |
SY Cement Interlock Paver Brick Machine QMR4-45 Diesel Engine Mobile Concrete Hollow Block Making Machine Sale In Congo Ghana
Wide Material for your option
Any one or two of them .stone dust .stone nitrate .construction waste .slag .mine tailings .river sand .coal gangue .porcelain granule .lime .carpolite .sandrock .etc..
This machine is suitable for mountainous area.hilly area.mine industrial area. clay control area. suburbs.desert.coastal area. etc.It is benifit for Individual owner production to be rich.
Blocks Samples
You can choose the size you want to make. or send us the design of the block you want for mold
SY Cement Interlock Paver Brick Machine QMR4-45 Diesel Engine Mobile Concrete Hollow Block Making Machine Sale In Congo Ghana
