Concrete Block Machinery Catalog
Discover our full range of European-design block making machines and turnkey production lines -- engineered for global infrastructure & housing projects.
- Products
- 1123+
- Categories
- 7
- Export
- 108+
QT415 Full Automatic Block Machine with PLC Control – Intelligent
<p><strong>QT415 Full Automatic Block Machine, PLC Control, 55 kN Vibration Force, 16-21 MPa Hydraulic Pressure</strong> — configured for concrete hollow, solid, and paving block formats using platform vibration at 4200 r/min and hydraulic demolding for consistent block-to-block density.</p> <ul> <li>Moulding cycle of 25-30 s, with actual output dependent on block format and pallet configuration</li> <li>PLC-controlled automation covers the press cycle; batching, pallet feeding, stacking, and cubing scope confirmed per quotation</li> <li>880×550 mm pallet size and 4 T machine mass with 300 m² factory area requirement</li> </ul> <p>We match vibration force and hydraulic pressure to your local aggregate and mix design, not a catalogue default, so block strength stays repeatable across every shift.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
QT4-15 Automatic Block Machine with PLC Control – Intelligent
<p><strong>QT4-15 Automatic Block Machine, PLC Control, 27.5 kW, 60 kN Vibration</strong> — designed for plant owners moving from manual or semi-automatic operation to repeatable, operator-independent output. Hydraulic pressure and vibration are tuned to your mix design and local aggregate, with pallet size matched to your curing area and forklift.</p> <ul> <li>Pallet size: 1020×850×40 mm</li> <li>Voltage: 380V or to buyer needs</li> <li>Standards: ISO9001:2008, CE</li> </ul> <p>Capacity calculations state the block format assumed for every output figure, so daily production matches your plan from day one.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
Intelligent Semi Automatic Concrete Brick Making Machinery – QTJ4-24
<p><strong>QTJ4-24 Semi-Automatic Concrete Block Machine, 11.95kW, 900×450mm Pallet, 24-26s Molding Cycle</strong> — engineered for plant owners stepping up from manual production who need repeatable block strength without full-line investment.</p> <ul> <li>Table vibration feeding paired with fluctuation vibration molding locks each cycle into a controlled sequence, reducing batch-to-batch density variation caused by operator timing differences.</li> <li>Electrical control cabinet with mechanical interworking prevents out-of-sequence operation, protecting moulds and hydraulic components from faulty manual input.</li> <li>Two manual feed ways let you match feeding speed to your local aggregate and mix design, keeping block face quality consistent across formats.</li> </ul> <p>Supplied as a matched system where vibration force and pallet specification are validated against your target block format, so commissioning starts from a known baseline rather than on-site guesswork.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
QT10-15 Automatic Block Making Machine with PLC Control – Intelligent12
<p><strong>QT10-15 Hydraulic Block Making Machine, PLC Control, 20g Vibration Acceleration</strong> — four-axis frequency conversion vibration with dynamic and static table, 360° press-in arch breaker feeding, adjustable air bag damping in the mould box.</p> <ul> <li>PLC-controlled frequency conversion motor adjusts vibration profile to match each mould format and mix design.</li> <li>Multi-purpose mould adaptability covers hollow blocks, porous bricks, pavement bricks, and slope protection bricks.</li> </ul> <p>Block machinery is our single focus, so the press, mould, pallet and handling are specified as one matched system rather than assembled from separate suppliers — your automation level is selectable and upgradable as your plant grows.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
Hollow Block Paver Interlocking Brick Making Machine – Automatic QTJ4-40
<p><strong>QTJ4-40 Semi-Automatic Concrete Block Making Machine, 9.5 kW, 40 s Molding Cycle</strong> — featuring dual vibration combining bed mould vertical vibration with upper mould compression for more uniform block density across formats.</p> <ul> <li>Automatic scraper and push-pull top die reduce manual intervention per cycle</li> <li>Pallet size 850 × 450 mm — confirm compatibility with your curing area and forklift</li> <li>Compact footprint suits on-site and workshop production</li> <li>Supports hollow blocks, solid bricks, pavers and interlocking bricks</li> </ul> <p>Every machine is configured against your actual mix design and local aggregate — not a catalogue default — and backed by full hydraulic and electrical documentation before shipment.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
QT5-15 Hollow Block Machine with PLC Control – Automatic Intelligent
<p><strong>QT5-15 Hydraulic Block Making Machine, PLC Control, 1100×550mm Pallet</strong> — configured for synchronized automatic operation from pallet feeding through demoulding, with 0-60Hz platform vibration and independent hydraulic station isolated from dust contamination.</p> <ul> <li>Mould change designed for quick replacement across hollow block, solid brick and paver formats within a single shift</li> <li>PLC touch screen interface with remote fault diagnosis, voltage and control language confirmed before shipment</li> <li>Capacity calculated per block format with mix design matched to your local aggregate and target strength</li> </ul>
- Automation
- Fully Auto
- Sold
- 50+ units
QT4-20 Concrete Block Making Machine with Hydraulic – PLC Control
<p><strong>QT4-20 Hydraulic Concrete Block Making Machine</strong>, 16–21 MPa rated pressure, 45 kN platform vibration at 4600 r/min, PLC-controlled molding cycle — configured to match your target block format, local aggregate and mix design rather than a catalogue default. Pallet size 1020×570 mm confirmed against your curing area and forklift before production, so the line integrates without on-site surprises.</p> <ul> <li>Mould, hydraulic and electrical documentation provided for local maintenance</li> <li>Automation level selectable from semi-automatic to full stacking and cubing</li> <li>Capacity calculation stated per block format, not a single generic number</li> </ul>
- Automation
- Fully Auto
- Sold
- 50+ units
QT4-15 Brick Making Machinery for Blocks | Automatic
<p><strong>QT4-15 Automatic Concrete Block Making Machine, PLC Computer Control, Multiaxis Synchronizer Vibration</strong> — fully automatic configuration where vibration, hydraulics and mould are specified as one matched system.</p> <ul> <li><strong>Multiaxis synchronizer vibration</strong> delivers vertically downward force for uniform block density across the pallet</li> <li>Long-period over-length guide bearing ensures precise upper mould-to-mould box alignment over thousands of cycles</li> <li>PLC control reduces operator-dependent variation, supporting batch-to-batch consistency for hollow blocks, pavers and solid bricks</li> </ul> <p>Machine, mould, pallet and handling equipment specified as a single matched system from one supplier, not assembled from separate sources.</p>
- Automation
- Fully Auto
- Sold
- 50+ units

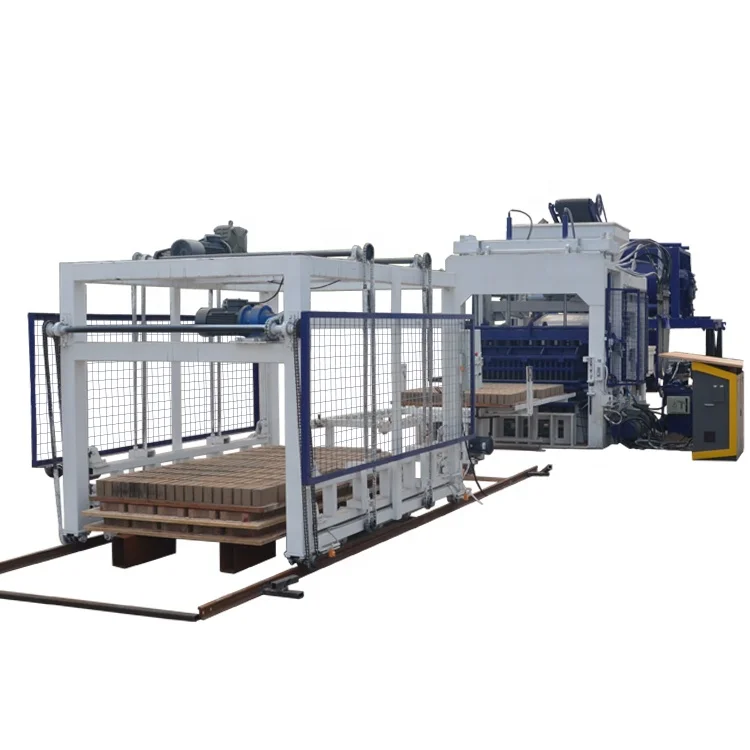

QT12-15 Automatic Block Making Machine – PLC Control
<p><strong>QT12-15 Automatic Block Making Machine, PLC Control, 1300×900mm Pallet</strong> — fully automatic configuration with four-axis synchronized vibration and frequency conversion control achieving 20g vibration acceleration. Industry 4.0 PLC system removes operator-dependent variables from the pressing cycle, while the static table stop device allows full excitation force delivery for consistent forming density. Voltage, frequency, and PLC language confirmed before production; machine, mould, pallet, and handling specified as one matched system.</p>
- Automation
- Fully Auto
- Sold
- 50+ units

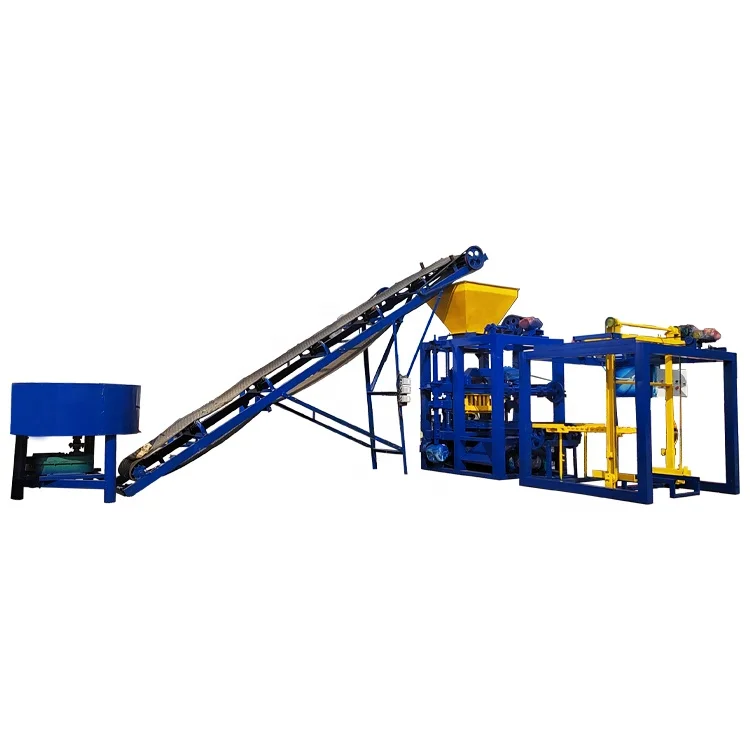

QTJ4-24 Block Making Machine with PLC Control – Automatic
<p><strong>QTJ4-24 Semi-Automatic Block Machine, 35.5 kN Vibration, 900×450 mm Pallet</strong> — configured against your actual mix design and local aggregate rather than a catalogue default.</p> <ul> <li>Platform vibration at 4200 r/min matched to pallet size for consistent compaction</li> <li>PLC control language and voltage confirmed before production to avoid commissioning delays</li> <li>Selectable automation level with a clear upgrade path toward automatic pallet feeding, stacking and cubing</li> </ul> <p>Block machinery is our single focus, so the press, mould, pallet and handling are specified together as one matched system for your target format.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
QT10-15 Cement Block Machine | PLC Control Intelligent
<p><strong>QT10-15 Cement Block Making Machine, PLC Control Cabinet, Independent Hydraulic Station</strong> — configured for consistent output across hollow, solid, and paving block formats.</p> <ul> <li>Mould change designed for quick replacement, with PLC storing cycle parameters per format to reduce changeover time</li> <li>Vertical station mode resonance with automatic FM-AM vibration tuning matched to the buyer's mix design and local aggregate</li> </ul> <p>Supported by a matched-system approach where press, mould, pallet and handling are specified together, plus line layout documentation stating the block format behind every capacity figure.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
QT6-15 Hollow Brick Making Machine with PLC Control – Intelligent81751
<p><strong>QT6-15 Hollow Block Making Machine, PLC Touch-Screen Control, 880×850mm Pallet, 37kW</strong> — configured for hollow block, solid brick, and paver formats with adjustable vibration parameters matched to local aggregate and mix design.</p> <ul> <li>Independent hydraulic station isolated from vibration ensures consistent demolding pressure</li> <li>Built-in fault diagnosis and safe logic interlock reduce unplanned downtime</li> <li>PLC display language and voltage confirmed before production to avoid commissioning delays</li> </ul> <p>We specify machine, mould, pallet, and handling as one matched system — not assembled from separate suppliers — so cycle times align across every station from feeding through stacking.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
International compliance certified
Fast global parts delivery
Strong technical support team
Worldwide export experience
Need a customized production line?
Tell us your target capacity, raw materials and project timeline. Our engineers will respond within 24 hours with a full proposal -- line layout, BOM and FOB pricing.
- 24-hour response with full company profile & spec sheet
- Free customization for local materials & site conditions
- Overseas commissioning & operator training included
