Concrete Block Machinery Catalog
Discover our full range of European-design block making machines and turnkey production lines -- engineered for global infrastructure & housing projects.
- Products
- 232+
- Categories
- 7
- Export
- 108+
PLC Control Stationary Block Machine QT4-15 for Hollow Block
<p><strong>QT4-15 Stationary Block Machine, PLC Control, 900×500mm Pallet, 50–220mm Product Height</strong> — hydraulic demolding with platform vibration at 50–70Hz coordinates pallet feeding, material dosing, and pressing as one PLC-managed sequence. Configured to your local aggregate and mix design so block strength stays consistent across hollow block, paver, and solid brick formats on a single platform. Output capacity 900–1920 pcs/hour depending on block size, with cycle time stated per format.</p> <ul> <li>Capacity calculation document provided with every quotation, tied to your target block format</li> <li>PLC display language, voltage, and frequency confirmed before production to match your site conditions</li> <li>Mould drawing and hydraulic schematic supplied so your maintenance team can service independently</li> </ul>
- Automation
- Fully Auto
- Sold
- 50+ units

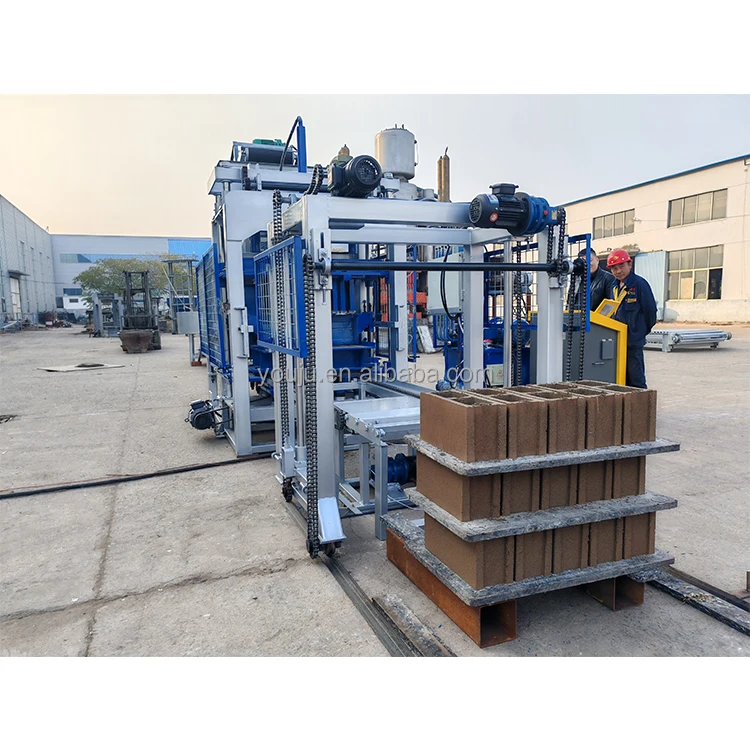

QT4-15 Automatic Block Making Machine – PLC Control
<p><strong>QT4-15 Automatic Block Making Machine</strong>, PLC controlled, 900x500mm pallet, 24.5kW, 50-70Hz platform vibration, hydraulic demoulding — engineered for hollow blocks, pavers, and solid bricks with fully automatic pallet feeding, material distribution, and stacking cycle.</p> <ul> <li>Capacity per format: 900-1200 pcs/h based on 400×200×200mm hollow block; 2880-3840 pcs/h based on 200×100×60mm paver, ensuring honest output planning for your plant upgrade</li> <li>Mould interchangeability across five block formats with matched vibration frequency and hydraulic pressure to maintain block density above 15 MPa consistently</li> </ul> <p>Supplied as a matched system — machine, mould, pallet, and handling specified together against your local aggregate, voltage, and curing layout, not assembled from separate sources.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
QT4-15 Hydraulic Block Making Machine – Automatic PLC Control80
<p><strong>QT4-15 Hydraulic Block Making Machine, PLC Control, 900×500mm Pallet, 50-70Hz Vibration</strong> — configured for medium-scale plants transitioning from manual or semi-automatic operation.</p> <ul> <li>Platform vibration paired with hydraulic demolding delivers consistent block density across hollow block, paver and solid brick formats on a single pallet size</li> <li>PLC coordinates material dosing, pressing cycle and pallet feeding, removing operator variables from batch-to-batch output</li> <li>Cycle time 15-30s depending on block format and mix design</li> </ul> <p>Machine, mould and pallet specified as one matched system against your local aggregate and target block format, not assembled from separate catalogue defaults.</p>
- Automation
- Fully Auto
- Sold
- 50+ units

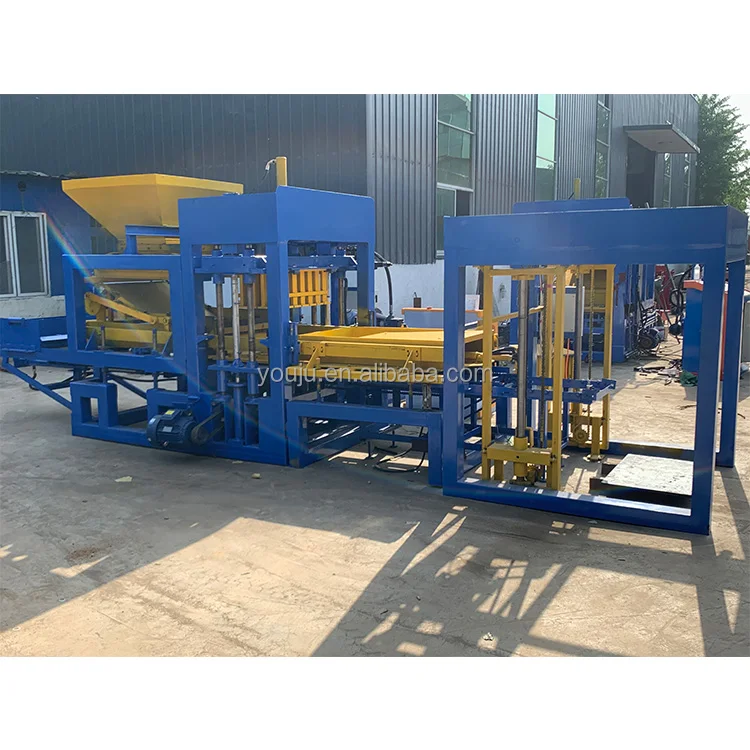

QT4-15 Block and Paver Making Machine – Automatic PLC Control
<p><strong>QT4-15 Automatic Block Making Machine, PLC Control, 900×500mm Pallet</strong> — hydraulic demoulding with platform vibration at 50-70Hz, producing hollow blocks, pavers and solid bricks on one platform. Product height range covers 50-220mm for multi-format flexibility.</p> <ul> <li>Automation coordinates pallet feeding, material feeding, vibrating and demoulding to reduce operator intervention and improve batch consistency</li> <li>Mould change across formats on the same pallet size, letting you respond to market demand without a second machine</li> </ul> <p>Every automation station is specified as a matched system with the press, so PLC logic, hydraulics and vibration are tuned together before dispatch.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
QT4-15 Automatic Concrete Block Making Machine – PLC Control
<p><strong>QT4-15 Automatic Concrete Block Making Machine, PLC Control, 900×500mm Pallet</strong> — hydraulic demoulding with platform vibration at 50–70 Hz keeps block density and compressive strength consistent across every cycle. The PLC manages pallet feeding, material dosing and vibration parameters per mould format, so operators supervise rather than manually intervene.</p> <ul> <li>Output: 900–1200 pcs/h based on 400×200×200mm hollow block; cycle parameters adjustable for pavers and solid bricks on the same pallet</li> <li>Mould change supported within the PLC without reprogramming the control logic</li> <li>Automation level selectable from semi-automatic entry to full stacking and cubing later</li> </ul> <p>Every electrical and hydraulic schematic is supplied before shipment, so your plant team can plan integration and future automation additions without waiting for the machine to arrive.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
QT4-15 Hydraulic Block Machine with PLC Control – Automatic
<p><strong>QT4-15 Hydraulic Block Making Machine, PLC Control, 900×500mm Pallet, 24.5kW</strong> — configured for hollow blocks, pavers, and solid bricks with platform vibration at 50-70Hz and hydraulic demolding.</p> <ul> <li>PLC-controlled full-cycle automation covers pallet feeding, material dosing, vibrating, and demolding, removing manual intervention for batch-to-batch consistency.</li> <li>Capacity stated per block format with cycle time assumed, not a single generic figure.</li> <li>Upgrade path available from base configuration to automatic stacking and cubing as your output grows.</li> </ul> <p>Machine, mould, pallet, and handling specified as one matched system against your actual mix design and local aggregate — not assembled from separate suppliers.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
QT4-15 Automatic Block Machine with PLC Control – Intelligent
<p><strong>QT4-15 Automatic Block Making Machine, PLC Control, 900x500mm Pallet, 24.5kW</strong> — engineered for block producers seeking consistent quality through intelligent automation.</p> <ul> <li><strong>PLC-controlled cycle</strong> coordinates pallet feeding, material distribution, vibration (50-70Hz), and hydraulic demolding automatically</li> <li>Mould change covers hollow blocks, pavers, and solid bricks with product heights from 50-220mm</li> <li>Cycle time ranges 15-30s depending on block format and mix design</li> </ul> <p>Configuration matched to your local aggregate and target strength requirements, with operator training and complete documentation support included.</p>
- Automation
- Fully Auto
- Sold
- 50+ units

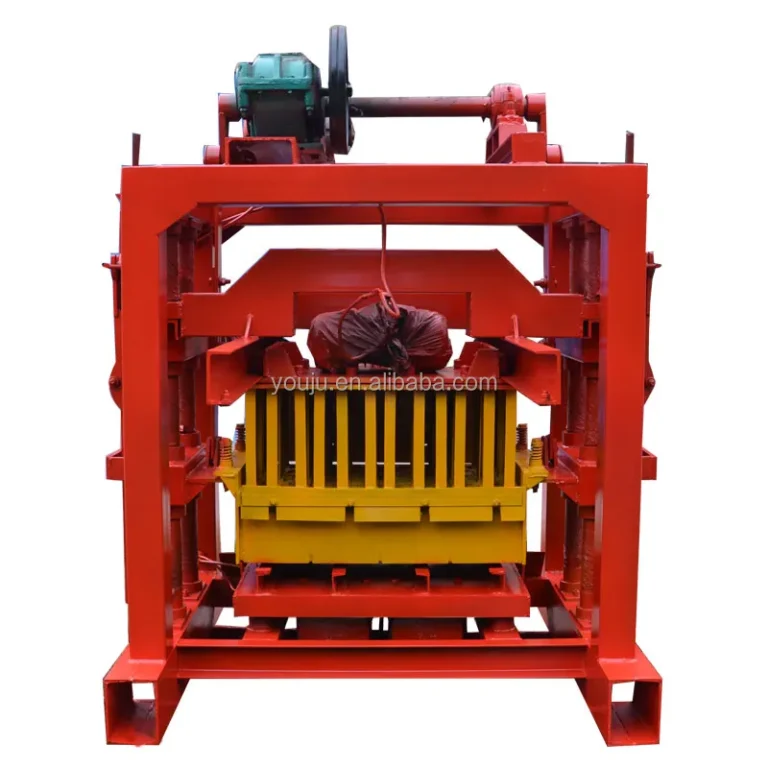

QTJ4-40 Interlocking Brick Machine – Intelligent PLC Control
<p><strong>QTJ4-40 Interlocking Brick Making Machine, 9.5 kW, 2800 r/min Vibration, 40 s Cycle</strong> — semi-automatic stationary press with Siemens motor driving consistent compaction density across interchangeable mould formats.</p> <p>Designed around automation intelligence: the baseline semi-automatic layout accepts future PLC-controlled pallet feeding, stacking, and batch consistency modules without replacing the press — letting you remove operator-dependent variables from vibration timing and cycle control as volume grows.</p> <ul> <li>Mould formats: 400×200×200 mm (4 pcs/cycle) and 400×240×200 mm (3 pcs/cycle)</li> <li>Pallet size: 850×450×40 mm</li> <li>Factory area: 200 m² with 3–5 workers</li> <li>Voltage: 380V or customized to local supply</li> </ul> <p>Machine, mould, pallet, and handling specified as one matched system against your actual mix design and local aggregate — not assembled from separate catalogue defaults.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
QT8-15 Automatic Concrete Block Making Machine with PLC Control – Intelligent Factory Supply
<p><strong>QT8-15 Automatic Concrete Block Making Machine, 21 MPa Hydraulic Pressure, Platform Vibration 60 kN</strong> — configured around the PLC and hydraulic-vibration coordination that determine block density across formats. The control system adjusts vibration frequency from 2800–4500 r/min and matches hydraulic flow pressure to your mix design, while automatic material feeding and stacking remove manual pallet handling from the operator's workflow. Machine, mould, pallet and handling specified as one matched system against your actual aggregate and target block strength.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
Intelligent Hollow Block Machine – QT12-15
<p><strong>QT12-15 Stationary Block Machine, PLC HMI Control, 100 kN Vibration</strong> — fully automatic with human-machine interface dialogue system managing cycle times from 15-20 s depending on block format. Platform vibration paired with computer-controlled hydraulic flow pressure ensures consistent density across hollow blocks, pavers, and interlocking formats on the 1220×900 mm pallet.</p> <ul> <li>Semi-closed screen reticular rotational feeding unit distributes material evenly before each press cycle</li> <li>Hydraulic demolding supports continuous mass production with reduced manual intervention</li> </ul> <p>Supplied as one matched system covering press, mould, pallet and handling — configuration set against your local aggregate and target block format.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
QT4-15 Hydraulic Solid Block Making Machine | PLC Control
<p><strong>QT4-15 Hydraulic Solid Block Making Machine</strong>, PLC control, platform vibration 50-70Hz, pallet size 900x500mm, hydraulic demolding.</p> <ul> <li>PLC-controlled automation synchronizes machinery, electric, hydraulic, and vibrating systems, removing manual timing guesswork from pallet feeding, material dosing, and demolding cycles for batch-to-batch consistency.</li> <li>Platform vibration paired with hydraulic demolding maintains cycle repeatability matched to your mix design and local aggregate.</li> <li>Cycle time 15-30s, compressive strength >15 MPa, overall power 24.5kW.</li> </ul> <p>Block machine as a single focus — machine, mould, pallet, and handling are specified as one matched system. Configuration set against your actual mix design, local aggregate, and target block format, not a catalogue default. Installation and commissioning support with operator training included.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
QT4-18 Automatic Block Making Machine | PLC Control
<p><strong>QT4-18 Automatic Stationary Block Machine, 27.5 kW, 40 kN Vibration Force, 1020×570 mm Pallet</strong> — designed for plant owners moving from manual to PLC-controlled block production. The 40 kN vibration force is evaluated against your local aggregate and mix design to ensure consistent block strength, while the pallet size aligns with existing curing racks and forklifts. Automation level is selectable, letting you start semi-automatic and add stacking or cubing later.</p> <ul> <li><strong>PLC control system</strong> with voltage, frequency and HMI language confirmed before production</li> <li>Capacity and cycle time calculated per your target block format, not a catalogue default</li> <li>Factory test record on the actual mould shipped, with matched hydraulic and electrical schematics</li> </ul>
- Automation
- Fully Auto
- Sold
- 50+ units
