Concrete Block Machinery Catalog
Discover our full range of European-design block making machines and turnkey production lines -- engineered for global infrastructure & housing projects.
- Products
- 311+
- Categories
- 7
- Export
- 108+
Automatic QT7-15 Hydraulic Block Making Machine – PLC Control
<p><strong>QT7-15 Automatic Hydraulic Block Making Machine, Siemens PLC, 100 kN Vibration Force</strong> — engineered as a synchronized block line where the press, automatic pallet feeder and SY-4 stacker operate under one PLC logic, eliminating manual pallet handling and maintaining repeatable cycle times across hollow block, solid block and paver formats.</p> <ul> <li>Hydraulic + platform vibration adjustable from 2800–4500 times/min, matched to your local aggregate and mix design for consistent block density</li> <li>Voltage (220/380/415/440V) and PLC display language confirmed before production to prevent commissioning delays</li> <li>Configuration set against your actual mix design and target block format, not a catalogue default, with mould and wear parts support included from day one</li> </ul>
- Automation
- Fully Auto
- Sold
- 50+ units
QTJ4-24 Stationary Block Machine with PLC Control – Automatic
<p><strong>QTJ4-24 Stationary Block Machine, 45 kN Vibration, 850×450 mm Pallet</strong> — dual-level vibration with upper and lower vibrators ensures uniform compaction, while the automatic spiral feeder delivers consistent material density across every 24–26 s cycle. Designed for plant owners moving from manual to semi-automatic operation with a clear path to full line automation.</p> <ul> <li>Molding method: mechanical with 350-type reducer for mold lifting</li> <li>Block formats: hollow, solid, paving, and interlocking bricks</li> <li>Total power: 11.95 kW | Total mass: 2 t</li> </ul> <p>Every configuration is set against your actual mix design and local aggregate, with pallet size matched to your existing curing layout — not a catalogue default.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
Automatic QTF3-20 Stationary Block Machine – PLC Control
<p><strong>QTF3-20 Stationary Block Machine, 17.5 kW, Hydraulic Drive, Double-Layer Feeding</strong> — PLC-coordinated platform vibration and hydraulic pressure ensure batch-to-batch consistency across hollow blocks, pavers and interlocking bricks. No-contact proximity switches eliminate sensor wear while the semi-automatic control logic supports a clear upgrade path to full stacking and cubing automation. Supplied as a matched system with mould, pallet and line specifications confirmed against your local aggregate and target format.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
QT5-15 Block Machine with PLC Control – Intelligent
<p><strong>QT5-15 Stationary Block Machine, 21MPa Hydraulic, PLC Control</strong> — fully automatic hydraulic press with platform vibration adjustable from 2800 to 4500 r/min, matched to your mix design and local aggregate for batch-to-batch consistency. Pallet size 1100×550mm supports hollow blocks, solid blocks, pavers and curbstones on a single line.</p> <ul> <li>PLC engine control automates cycle management, reducing operator-dependent variables</li> <li>Hydraulic demolding ensures consistent block release and lower mould wear</li> </ul> <p>Capacity calculations provided per block format, with voltage, frequency and PLC language confirmed before shipment — machine, mould and handling specified as one matched system.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
QT5-15 Stationary Block Machine for Hollow Concrete Block – Automatic
<p><strong>QT5-15 Stationary Hydraulic Block Making Machine, 21 MPa Rated Pressure, 1100×550 mm Pallet, PLC Control</strong> — configured for hollow blocks, solid blocks and pavers with platform vibration at 2800–4500 r/min matched to local aggregate and mix design. Automation level selectable from core PLC-controlled moulding through to full automatic pallet feeding, stacking and cubing.</p> <ul> <li>Mould change enabled by hydraulic demolding within the 15–25 s cycle range</li> <li>Capacity calculation stated per block format with cycle time and cavity count before order</li> </ul> <p>One matched system from press to pallet handling, with voltage, frequency and control language confirmed before production.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
QT7-15 Block Making Machine with Hydraulic – PLC Control
<p><strong>QT7-15 Automatic Hydraulic Block Making Machine, 100 kN Vibration Force, Siemens PLC Control, 15s Cycle Time</strong> — engineered as a fully matched automatic line from batching through stacking, with hydraulic pressure and platform vibration tuned to your mix design so the press never waits on upstream or downstream equipment.</p> <ul> <li>Mould carburizing at 54–58 HRC delivers over 100,000 cycle service life</li> <li>Line integration pairs PLD1200 batching, JS500 mixer and SY-4 stacker to prevent station bottlenecks</li> <li>Voltage, frequency and PLC display language confirmed before production to eliminate commissioning delays</li> </ul> <p>Capacity calculations and line layout state the block format assumed for every output figure, so you plan against real tonnage rather than catalogue claims.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
QTJ4-24 Automatic Small Cement Brick Making Machine with PLC Control | Intelligent
<p><strong>QTJ4-24 Automatic Small Cement Brick Making Machine</strong>, 11.95kW, 45KN vibration force — calibrated to your local aggregate and mix design rather than a catalogue default.</p> <ul> <li>Dual-layer vibration (2×3kW lower + 2×1.5kW upper) ensures uniform compaction across interlocking, hollow, paving and solid brick formats</li> <li>Full-automatic spiral material distribution reduces operator intervention while 350-type reducer extends mold lifting service life</li> <li>PLC-ready configuration with selectable automation level — start semi-automatic and add stacking or cubing as output grows</li> </ul> <p>Machine, mould, pallet and handling specified as one matched system, so cycle time and capacity are stated against the block format you actually sell.</p>
- Automation
- Fully Auto
- Sold
- 50+ units

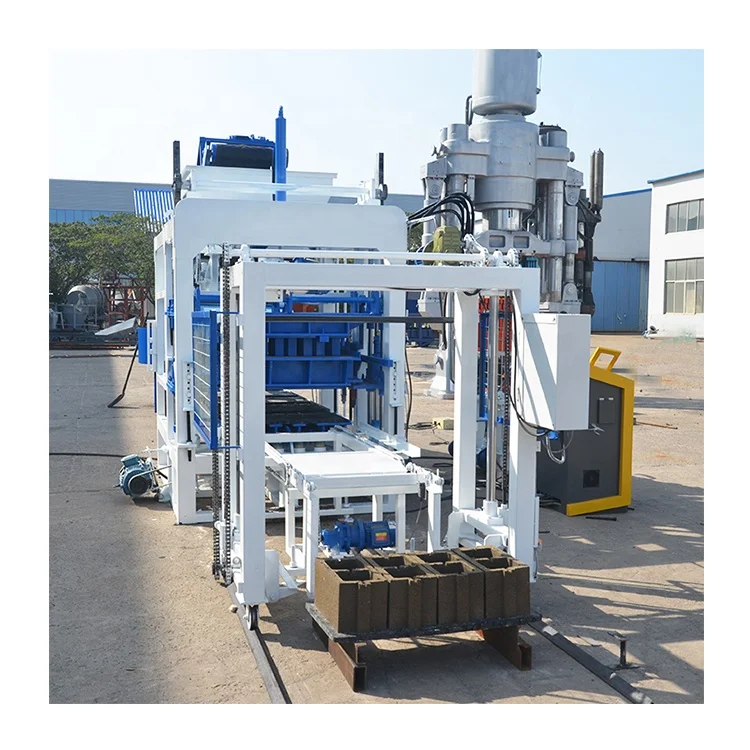

QT4-18 Automatic Hollow Block Making Machine with PLC Control
<p><strong>QT4-18 Automatic Hollow Block Making Machine, PLC Control, Hydraulic Demoulding</strong> — configured for plant owners moving beyond manual operation to repeatable, shift-after-shift output consistency.</p> <ul> <li>PLC-controlled interlocking procedure actions lock vibration, pressure and timing together, removing operator guesswork from block consistency</li> <li>Platform vibration 0–60 Hz matched to mould format and mix design; 18–25 s moulding cycle</li> <li>Supports hollow block, paving block, kerbstone and solid brick formats with hydraulic release for consistent demoulding</li> </ul> <p>Capacity calculations stated per block format, automation level selectable with a clear upgrade path to full stacking and cubing, and voltage, frequency and PLC language confirmed before production to avoid commissioning delays.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
PLC Control Stationary Block Machine for Hollow Block and Paver
<p><strong>QTF3-20 Stationary Block Making Machine, Semi-Automatic PLC Control, 17.5 kW Hydraulic Drive</strong> — paired with platform vibration and double-layer material feeding for consistent density and color surface finish on hollow blocks and pavers.</p> <ul> <li>Hydraulic pressure and vibration force tuned to your local aggregate and mix design, not a catalogue default</li> <li>No-contact proximity switch monitoring ensures repeatable block height across formats</li> </ul> <p>Machine, mould, pallet and handling specified as one matched system, so cycle times and output figures hold up once production starts.</p>
- Automation
- Fully Auto
- Sold
- 50+ units

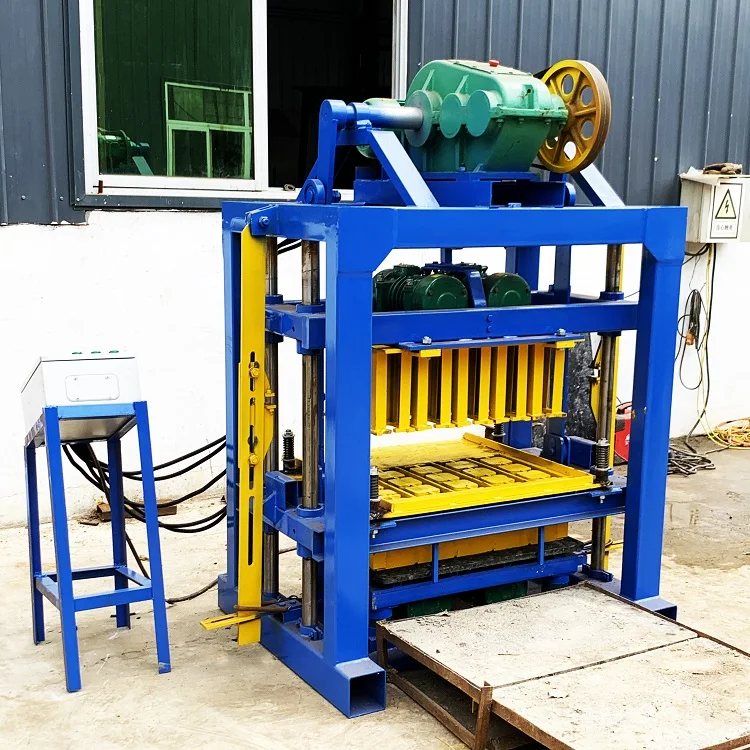

QTJ4-40 Concrete Block Machine – PLC Control & Automatic Upgrade
<p><strong>QTJ4-40 Semi-Automatic Concrete Block Machine, 10.4 kW, 40s Molding Cycle</strong> — delivers consistent block density through dual vibration: bed mould vertical vibration paired with upper mould compression. Semi-automatic baseline supports future PLC-controlled pallet feeding and stacking, letting plant owners add automation in stages. Pallet size 850×450×20 mm should be checked against your curing area and forklift. We configure each line as one matched system, confirm voltage and control language before production, and supply moulds built for your local market formats.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
QTJ4-40 Semi Automatic Block Making Machine – PLC Control87
<p><strong>QTJ4-40 Semi-Automatic Block Making Machine, 10.4kW, 40s Molding Cycle</strong> — bridges manual and fully automatic production with dual vibration (bed mould vertical + upper mould compression) ensuring block density matches your local aggregate and mix design. PLC control delivers batch-to-batch consistency, with a clear upgrade path as output demand grows.</p> <ul> <li>Output: 2880 pcs/day based on 400×200×200mm hollow block, 4 pcs/mould</li> <li>Pallet size 850×450×20mm aligned to standard curing area workflow</li> <li>Voltage, frequency, and control language confirmed before shipment</li> </ul> <p>Machine, mould, and pallet specified as one matched system — not assembled from separate suppliers — with factory test record verifying cycle time and block strength against your target format.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
QTJ4-35 Concrete Hollow Block Machine – Automatic PLC Control
<p><strong>QTJ4-35 Stationary Block Machine, 9.7kW, Platform Vibration</strong> — configured with 2800 r/min vibration and 850×450mm pallet size to match your local aggregate and curing setup. Cycle time and block format confirmed before quotation, so daily output matches your plant plan.</p> <ul> <li>PLC control language and voltage verified to your site before shipment</li> <li>Mould options for hollow, solid, paver and interlocking blocks</li> <li>Automation upgrade path from semi-automatic pallet handling to stacking</li> </ul>
- Automation
- Fully Auto
- Sold
- 50+ units
International compliance certified
Fast global parts delivery
Strong technical support team
Worldwide export experience
Need a customized production line?
Tell us your target capacity, raw materials and project timeline. Our engineers will respond within 24 hours with a full proposal -- line layout, BOM and FOB pricing.
- 24-hour response with full company profile & spec sheet
- Free customization for local materials & site conditions
- Overseas commissioning & operator training included
