Concrete Block Machinery Catalog
Discover our full range of European-design block making machines and turnkey production lines -- engineered for global infrastructure & housing projects.
- Products
- 166+
- Categories
- 7
- Export
- 108+
QT8-15 Brick Making Machinery | PLC Control Automatic
<p><strong>QT8-15 Automatic Block Machine, PLC Touch Screen, 21 MPa Hydraulic Pressure</strong> — the intelligent side of your block line starts here. PLC control lets you store and recall process parameters per block format, while the independent hydraulic station stays isolated from vibration and dust for consistent cycles. Automatic stacking handles two pallets at a time across 3-6 layers.</p> <ul> <li>Vibration frequency: 2800-4500 RPM with platform vibration</li> <li>Pallet size: 950 x 900 mm</li> <li>Mould change system supports multiple block formats</li> <li><strong>Configured to your mix design, local aggregate, and voltage</strong> — with full documentation including hydraulic schematics and operator training at commissioning</li> </ul>
- Automation
- Fully Auto
- Sold
- 50+ units
QT4-15 Hydraulic Block Making Machine with PLC – Automatic Control62
<p><strong>QT4-15 Automatic Block Machine, PLC Control, Multiaxis Vibration</strong> — fully automatic cycle with computer-controlled operation, hydraulic pressure and vertically downward vibration matched to your block format and mix design.</p> <ul> <li>Output capacity verified per block format, not quoted as a single cycle figure</li> <li>Voltage, frequency and PLC display language confirmed in writing before production</li> <li>Mould, pallet and handling specified as one matched system</li> </ul> <p>We configure every QT4-15 against your actual local aggregate and target block strength, not a catalogue default.</p>
- Automation
- Fully Auto
- Sold
- 50+ units

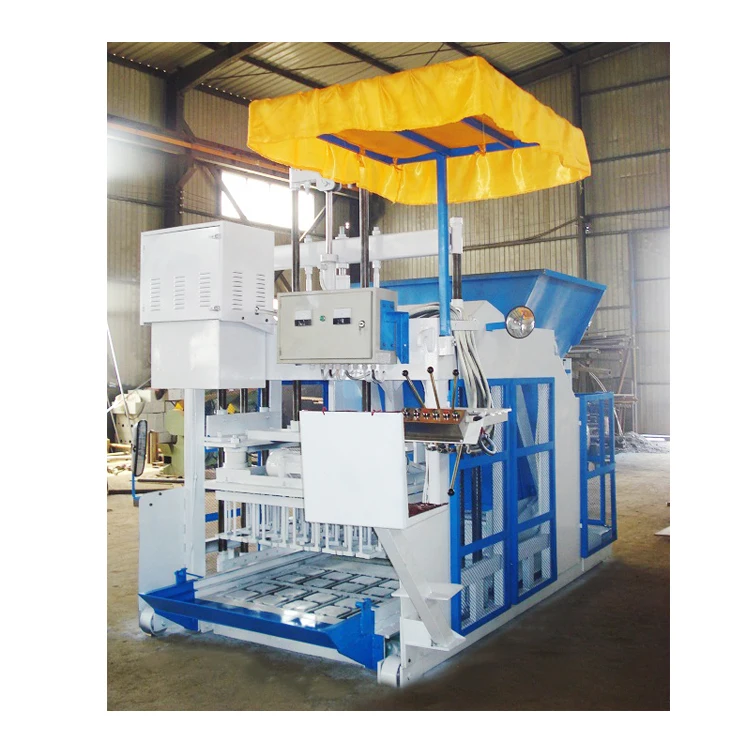

QMY10-15 Automatic Mobile Block Making Machine – PLC Control
<p><strong>QMY10-15 Automatic Mobile Block Making Machine, PLC Control, Pallet-Free Egg-Laying Type</strong> — full-automatic cycling with 15–20 s moulding cycle across four hollow block formats, driven by Siemens motor with hydraulic pressure and vibration for consistent block density batch after batch.</p> <ul> <li>Output: 1,800–2,400 pcs/h based on 400×200×200mm hollow block (10 pcs/mould)</li> <li>Mould formats: 400×200×200 / 400×150×200 / 400×120×200 / 400×100×200mm</li> <li>Heat-treated moulds maintain dimensional tolerance over long production runs</li> </ul> <p>Control system language, voltage and frequency are confirmed against your site conditions before production, so commissioning starts without electrical or interface delays.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
QT15-15 Automatic Block Production Line | PLC Control
<p><strong>QT15-15 Fully Automatic Concrete Block Production Line, PLC Control, 15–20s Moulding Cycle</strong> — designed as one matched system where vibration frequency, hydraulic flow pressure and forced feeding are tuned together so batch-to-batch consistency does not depend on operator skill. PLC with human-machine interface enables real-time process signal analysis and optimised operation across hollow block, solid brick and paver formats.</p> <ul> <li>Capacity stated per block format with cycle time, not a single headline figure</li> <li>Frequency-conversion braking with double vibration sources ensures product compactness</li> <li>Automation level selectable from press-only through to full pallet stacking and cubing</li> </ul> <p>Specified against your actual mix design and local aggregate, with voltage, PLC language and mould drawings confirmed before production so commissioning starts on day one.</p>
- Automation
- Fully Auto
- Sold
- 50+ units

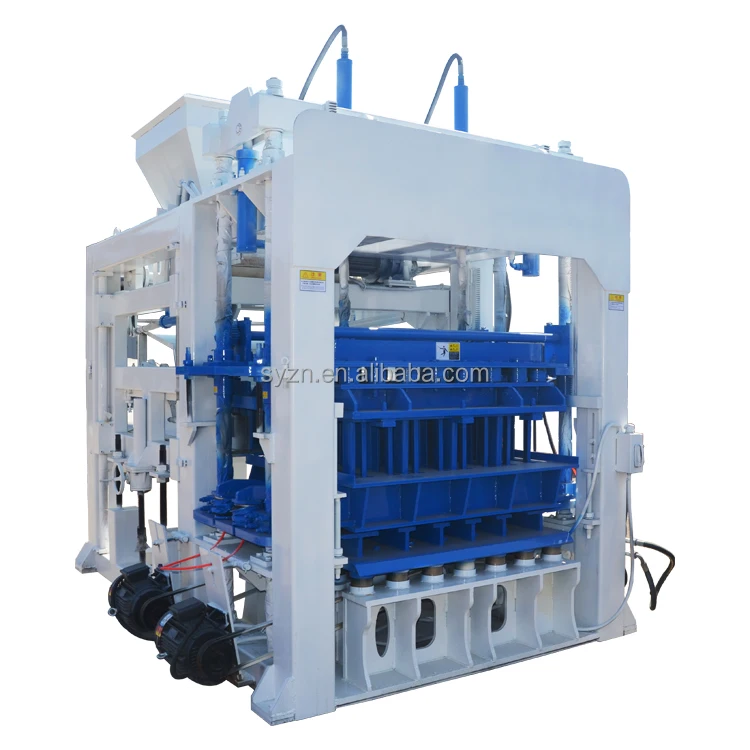

QT12-15 Block Machine for Hollow & Porous Block – Automatic
<p><strong>QT12-15 Automatic Block Machine, PLC Control, 15-20s Moulding Cycle</strong> — configured as a fully automatic stationary press where PLC manages vibration frequency, hydraulic flow pressure and forced feeding in synchrony, removing operator guesswork and delivering batch-to-batch consistency. Capacity stated per block format: 17,280-23,040 pcs/8hr based on 400×200×200mm hollow block (12 pcs/mould), 74,880-99,840 pcs/8hr based on 240×115×53mm solid brick (52 pcs/mould).</p> <ul> <li>Frequency-conversion vibration with double sources matched to mould box service life and block density</li> <li>Semi-closed screen reticular rotational feeding for even material distribution across the pallet</li> <li>Upgrade path available from semi-automatic operation with automation level selectable to your line layout</li> </ul> <p>Machine, mould, pallet and handling specified as one matched system against your actual mix design and local aggregate, with voltage and PLC language confirmed before production.</p>
- Automation
- Fully Auto
- Sold
- 50+ units

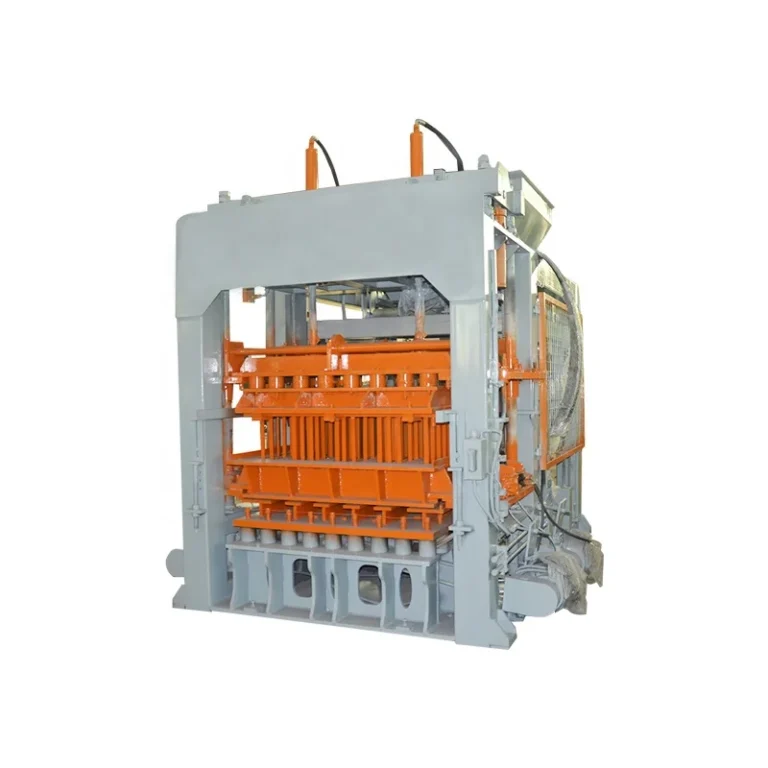

Automatic QT10-15 Block Making Machine PLC Control
<p><strong>QT10-15 Automatic Block Making Machine, PLC Control, Independent Hydraulic Station</strong> — configured as a fully coordinated line where pallet feed, material hopper, conveyor, and press cycle run under a single PLC cabinet for hands-off operation. The independent hydraulic station sits isolated from host vibration and dust, maintaining pressure stability across long shifts. Mould change uses a quick-release system so format switching completes within one shift without losing production time.</p> <ul> <li>Capacity figures stated per block format and mould count — not a single headline number</li> <li>Voltage, frequency, and PLC display language confirmed in writing before production</li> <li>Hydraulic and electrical schematic supplied for local maintenance teams</li> </ul>
- Automation
- Fully Auto
- Sold
- 50+ units

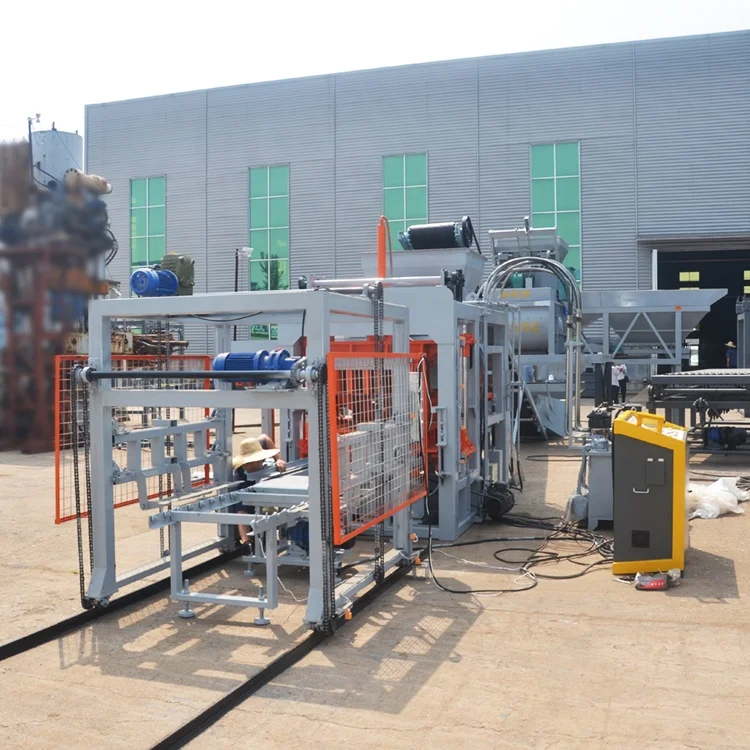

QT6-15 Automatic Block Making Machine – PLC Control83
<p><strong>QT6-15 Automatic Block Making Machine, PLC Control, Automatic Stacker</strong> — designed for hollow and paving block plants moving to fully unattended operation. The line integrates batching, mixing, forming and stacking under one PLC-controlled system, so the press is never left waiting for pallets or manual handling. Automation removes labor from every station while keeping batch-to-batch consistency across formats.</p> <ul> <li>Machine, mould, pallet and handling specified as one matched system</li> <li>Configuration set against your actual mix design and local aggregate</li> <li>Installation support with operator training included</li> </ul>
- Automation
- Fully Auto
- Sold
- 50+ units
QT5-15 Automatic Block Making Machine – PLC Control
<p><strong>QT5-15 Automatic Block Making Machine, 26.5 kW, 16–21 MPa Hydraulic Pressure, PLC Control</strong> — pairs platform vibration at 45 kN with adjustable hydraulic pressure to match your local aggregate and mix design. Configured for block formats from hollow blocks to pavers, with pallet size 1100×550 mm and molding cycle of 15–20 seconds, reducing operator dependency through interlocking electric-hydraulic procedures.</p> <ul> <li>Specify as one matched system — machine, mould, pallet and handling aligned to your product range</li> <li>PLC display language and voltage confirmed before production to avoid commissioning delays</li> <li>Automation level selectable so your plant can start semi-automatic and expand later</li> </ul>
- Automation
- Fully Auto
- Sold
- 50+ units
QTJ4-25 Concrete Block Making Machine | PLC Control
<p><strong>QTJ4-25 Semi-Automatic Concrete Block Making Machine, 45 kN Vibration, 25 s Cycle, 850×550 mm Pallet</strong> — configured so vibration force and cycle time match your local aggregate and mix design, giving consistent block strength across every batch rather than a catalogue default setting.</p> <ul> <li>Electric control with Siemens or ABB motor, 380V 3-phase 50Hz (voltage customizable)</li> <li>Mould flexibility for hollow block, solid brick, interlocking paver and curbstone</li> <li>Workshop area 50–150 m² with clear upgrade path to full PLC automation later</li> </ul> <p>Machine, mould, pallet and handling specified as one matched system, so the line is balanced before it leaves the factory.</p>
- Automation
- Fully Auto
- Sold
- 50+ units

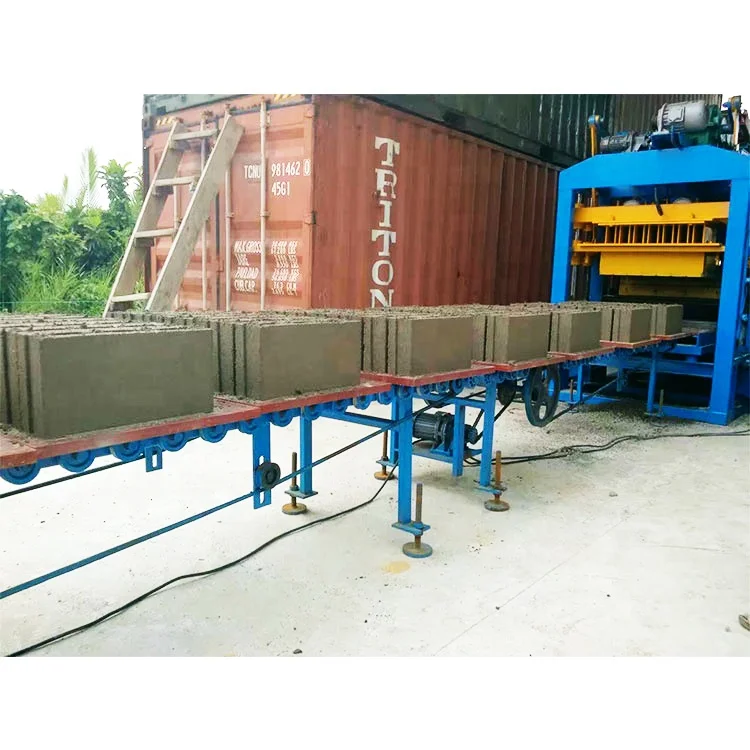

QTJ4-25 Concrete Hollow Block Machine – PLC Control
<p><strong>QTJ4-25 Concrete Block Making Machine, 45KN Vibration, 25s Cycle</strong> — starts as a semi-automatic press with Siemens or ABB motors and 850×550mm pallets, giving plant owners a clear baseline for evaluating PLC-controlled batching and automatic stacking upgrades against current labour costs.</p> <ul> <li>400×200×200mm hollow block: 480 pcs/h based on 4 pcs/mould</li> <li>400×100×200mm hollow block: 840 pcs/h based on 7 pcs/mould</li> </ul> <p>Single-focus block machinery supplier ensures press, mould and pallet handling are specified as one matched system for consistent automation integration.</p>
- Automation
- Fully Auto
- Sold
- 50+ units

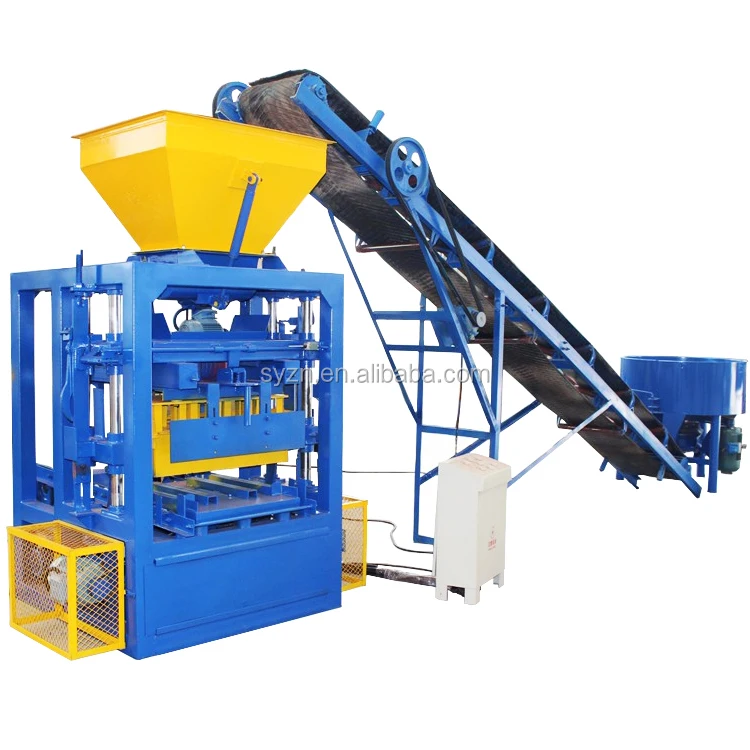

Qt4 -26 Semi-automatic Block Machine | PLC Control
<p><strong>Qt4 -26 Semi-automatic Block Machine, 26MPa, 19.75KW, 880×480mm Pallet</strong> — configured for concrete, fly ash and crushed stone mixes with platform vibration at 4500 r/min paired to rated hydraulic pressure for batch-to-batch density consistency. Mould formats cover hollow, solid, interlocking, paver and curbstone, with semi-automatic demolding as a baseline that supports later addition of PLC-controlled cycling and automatic stacking.</p> <ul> <li>Block machinery as a single focus means press, mould, pallet and handling are specified as one matched system rather than assembled from separate suppliers.1</li> </ul>
- Automation
- Fully Auto
- Sold
- 50+ units

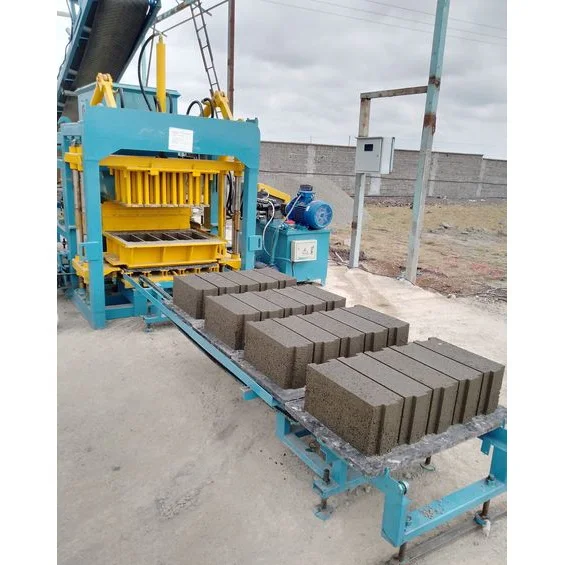

Automatic Concrete Block Making Machine with QT4-15 – PLC Control
<p><strong>QT4-15A Fully Automatic Block Machine, 16 MPa Hydraulic Pressure, 4600 r/min Vibration</strong> — configured for hollow, solid, and paving block production with exchangeable moulds.</p> <p>The line integrates batching, pallet feeding, pressing, and stacking under one PLC system, so cycle times match across every station without manual handoff. Automation level is selectable, letting operators reduce handling tasks while maintaining batch-to-batch density consistency.</p> <p>Machine, mould, pallet, and handling equipment specified as one matched system — not assembled from separate suppliers.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
International compliance certified
Fast global parts delivery
Strong technical support team
Worldwide export experience
Need a customized production line?
Tell us your target capacity, raw materials and project timeline. Our engineers will respond within 24 hours with a full proposal -- line layout, BOM and FOB pricing.
- 24-hour response with full company profile & spec sheet
- Free customization for local materials & site conditions
- Overseas commissioning & operator training included
