Concrete Block Machinery Catalog
Discover our full range of European-design block making machines and turnkey production lines -- engineered for global infrastructure & housing projects.
- Products
- 166+
- Categories
- 7
- Export
- 108+

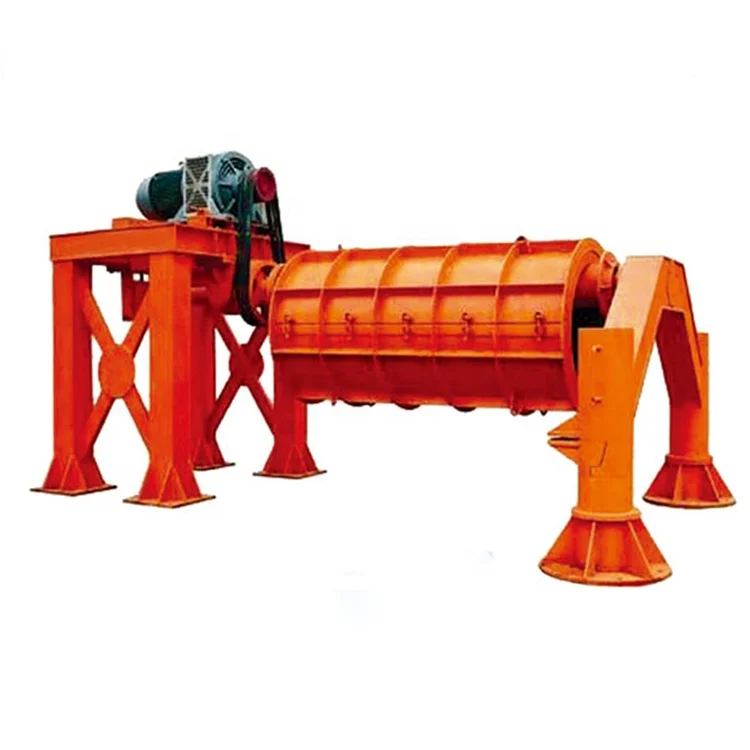

Automatic Suspension Roller Type Concrete Pipe Making Machine
<p><strong>Suspension Roller Type Concrete Pipe Making Machine, 300–2500mm Diameter, 2–4m Length, PLC Control</strong> — engineered for reinforced and pre-stressed concrete pipe production with programmable roller speed and cycle timing, delivering batch-to-batch consistency in wall density. Dry cast forming eliminates waste slurry while custom mould configurations support flush joint and socket & spigot joint profiles to match project specifications.</p> <ul> <li>Machine and control system configured against your site voltage, frequency and operator language before shipment, with full factory test records and wear parts documentation included.</li> </ul>
- Automation
- Fully Auto
- Sold
- 50+ units
Intelligent Automatic Block Machine QT6-15 – PLC Control System
<p><strong>QT6-15 Automatic Block Machine, 31.25 kW, PLC Intelligent Control</strong> — fully automatic concrete block making line with man-machine interface, malfunction diagnosis and remote monitoring.</p> <ul> <li>Hydraulic pressure 16–21 MPa paired with platform vibration ensures consistent block density across formats</li> <li>Pallet size 850 × 680 mm; cycle 15–20 s depending on block format and mix design</li> <li>Optional face-color feeding device for surface-colored pavers on the same press</li> </ul> <p>Every capacity figure is tied to a named block size and mould cavity count, with voltage and PLC language confirmed before production.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
PLD1200 Concrete Batching Machine with PLC Control
<p><strong>PLD1200 Concrete Batching Machine, 1200L Hopper, ±2% Ingredient Precision</strong> — integrates into your block production line with PLC-controlled weigh-batching and 1.25m/s belt delivery, matching the press cycle so the mixer is never left waiting. Four independent 4kW drives let each hopper discharge on its own schedule, keeping batch-to-batch consistency tight across different aggregate sizes.</p> <ul> <li>4×4kW independent hopper drives for flexible batching rhythm</li> <li>±2% weighing precision eliminates manual dosing variance</li> <li>1200L hopper capacity suits mid-range automatic block lines</li> </ul> <p>Voltage, control language and hopper count are confirmed against your site conditions before build, and the batching PLC is specified as one matched system with your press — not bolted on from a separate supplier.</p>
- Automation
- Fully Auto
- Sold
- 50+ units

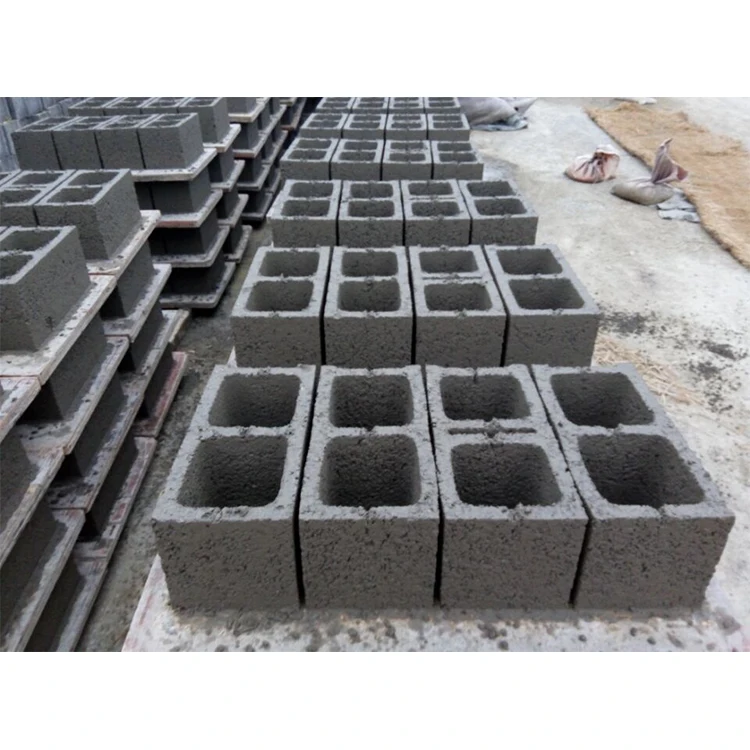

QTJ4-26 Small Scale Concrete Block Making Machine | Automatic
<p><strong>QTJ4-26 Small Scale Concrete Block Making Machine, 12.75 kW, 900×450 mm Pallet</strong> — platform vibration at 4200 r/min delivers batch-to-batch density consistency that manual compaction cannot match. The semi-automatic configuration serves as a practical starting point, with a clear path to add automatic pallet feeding, stacking, and cubing later without replacing the press.</p> <ul> <li>Molding cycle, rated exiting force, and pallet handling level confirmed per your block format before shipment</li> <li>Voltage, frequency, and control language matched to your site to avoid commissioning delays</li> <li>Machine, mould, and pallet specified as one system against your actual mix design and local aggregate</li> </ul>
- Automation
- Fully Auto
- Sold
- 50+ units
Interlocking Paver Block Machine QTJ4-24 | Intelligent
<p><strong>QTJ4-24 Semi-Automatic Block Machine, 35.5 kN Exciting Force, 14.25 kW, 880×480 mm Pallet</strong> — equipped with frequency converting motor control and platform vibration for consistent density across hollow, solid and interlocking paver formats.</p> <p>Control language, voltage and automation add-ons such as PLC, pallet feeder and stacker are confirmed to the buyer's site before production, so commissioning is not delayed on arrival.</p> <p>Single-focus block machinery supplier specifying press, mould, pallet and handling as one matched system rather than separate purchases.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
PLC Control Mobile Block Machine QMY2-45 for Construction Equipment
<p><strong>QMY2-45 Mobile Egg-Laying Block Machine, 1.5 kW, 45 s Cycle</strong> — manual operation with mold vibration producing 400×200×200 mm hollow blocks, 2 pcs per mould. Blocks laid directly on ground, no pallet or fixed plant required. - Ideal entry point for on-site or small workshop production; cycle timing and vibration force depend on the operator, so batch consistency has a ceiling. - smartblockmachine.com maps the exact automation upgrade path from this tier to PLC-controlled lines that remove operator dependency and add stacking consistency. - Machine, mould and handling specified as one matched system, with configuration set against your local aggregate and target block format.</p>
- Automation
- Fully Auto
- Sold
- 50+ units

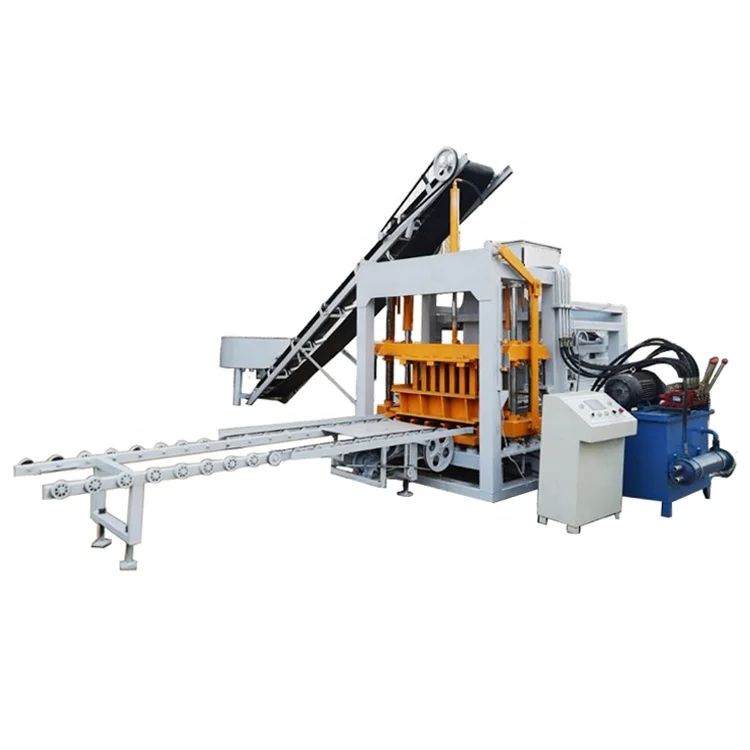

QT4-20 Automatic Block Machine for Concrete Solid Hollow Paver – PLC Control
<p><strong>QT4-20 Automatic Block Machine, Hydraulic Press 16–21 MPa, Platform Vibration 4600 r/min, PLC Control</strong> — configured as a matched system where vibration force and hydraulic pressure work together to keep block density consistent across formats. Automation level starts semi-automatic with a clear path to add pallet feeding, stacking, and cubing as output grows. Pallet size 950×500 mm and mould compatibility cover hollow, solid, paver, and curbstone production.</p> <ul> <li>Voltage, frequency, and PLC display language confirmed and locked before production starts</li> <li>Capacity stated per block format with cycle time, not a single unqualified cycles-per-hour figure</li> <li>Wear parts and mould list provided at quotation stage so first replacements arrive on time</li> </ul>
- Automation
- Fully Auto
- Sold
- 50+ units
QTJ4-24 Semi-Automatic Block Machine for Concrete Solid Blocks – PLC Control
<p><strong>QTJ4-24 Semi-Automatic Concrete Block Making Machine, 14.25 kW, 35.5 kN Exciting Force, Platform Vibration</strong> — configured with frequency-converting motor control and electro-mechanical integration for batch-to-batch consistency. The control system manages vibration timing and pressure delivery, reducing operator guesswork while leaving a clear upgrade path toward full automation when production volume grows. - Mould change system, pallet spec, and control language are confirmed with the buyer before shipment to avoid commissioning delays on site.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
Qt10-15 Automatic Block Machine – PLC Control
<p><strong>Qt10-15 Automatic Concrete Block Making Machine, PLC Control, 21 MPa Hydraulic Pressure, Platform Vibration 60 kN</strong> — configured to your block format and local mix design rather than a catalogue default.</p> <ul> <li>PLC with person-machine conversation interface removes manual sequencing for batch-to-batch consistency</li> <li>Platform vibration at 2800–4500 r/min matched to your aggregate and target block strength</li> <li>Hydraulic demolding supports clean release across hollow, solid, paver, and interlocking formats</li> <li>1100×900 mm pallet size, 44 kW total power, 500 m² factory area required</li> </ul> <p>Capacity calculation provided per specific block format with voltage, frequency, and PLC display language confirmed before production.</p>
- Automation
- Fully Auto
- Sold
- 50+ units

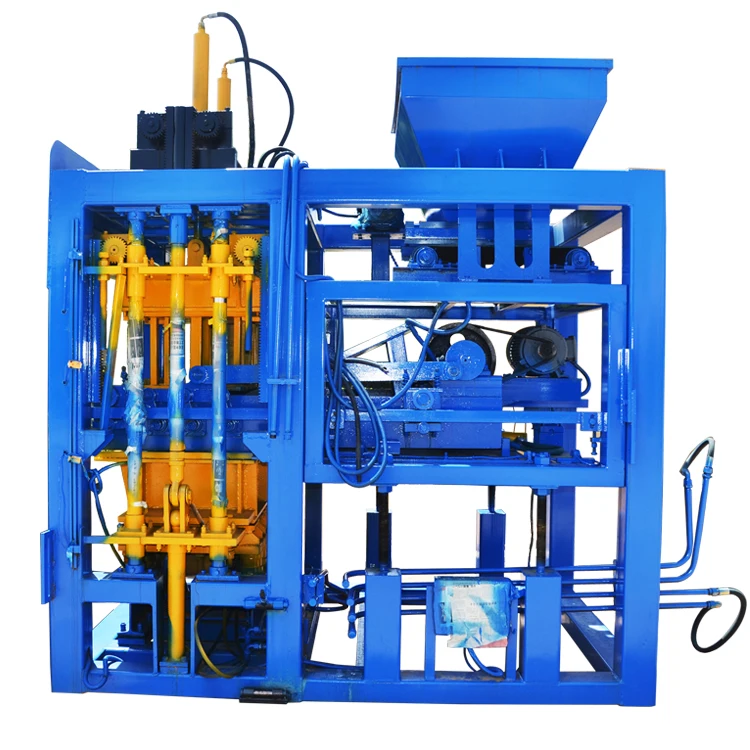

QT14-15 Automatic Concrete Block Making Machine – PLC Control
<p><strong>QT14-15 Automatic Concrete Block Making Machine, PLC Computer Control, Multiaxis Synchronizer Vibration</strong> — removes cycle-to-cycle variation from the operator so block density and dimensions stay consistent across every format the line runs. Vibration force and hydraulic pressure are configured against your actual mix design and local aggregate, not a catalogue default. Long-period over-length guide bearings maintain precise upper mould alignment through extended production runs.</p> <ul> <li>Capacity stated per block format with assumptions documented</li> <li>PLC display language and voltage confirmed in writing before production</li> <li>Full hydraulic and electrical schematic supplied for local maintenance</li> </ul>
- Automation
- Fully Auto
- Sold
- 50+ units

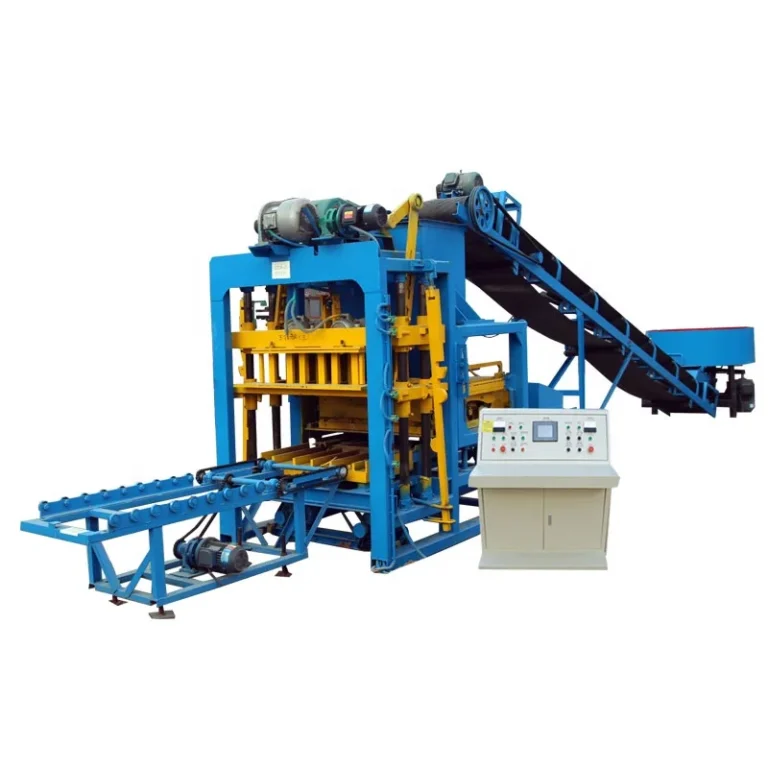

QTJ4-25 Automatic Block Making Machine – PLC Control
<p><strong>QTJ4-25 Automatic Block Making Machine, 21 MPa Hydraulic Pressure, 850×480 mm Pallet, 17 kW</strong> — electro-mechanical control governs every press cycle, removing operator guesswork so block density stays uniform across the shift. The exchangeable mould system lets you rotate between hollow blocks, pavers and interlocking formats without cancelling a day's output.</p> <ul> <li>380V / 3-phase / 50Hz, voltage and PLC display language confirmed before production</li> <li>1–2 staff per shift; semi-automatic base with a defined upgrade path as volume grows</li> </ul> <p>Machine, mould and pallet specified as one matched system against your local aggregate and target block format — not a catalogue default.</p>
- Automation
- Fully Auto
- Sold
- 50+ units
QT4-20 Automatic Block Machine – PLC Control
<p><strong>QT4-20 Automatic Block Machine, 27.5 kW, PLC Control, 60 kN Vibration</strong> — platform vibration at 2800–4500 r/min paired with 21 MPa hydraulic demolding keeps block density consistent across hollow, solid, and paver formats. PLC person-machine interface removes manual cycle timing, so repeatability holds across shifts and operators.</p> <ul> <li>Configured against your local aggregate and target block strength, not a catalogue default</li> <li>Machine, mould, pallet, and handling specified as one matched system</li> <li>Installation support with operator training and wear parts list included</li> </ul>
- Automation
- Fully Auto
- Sold
- 50+ units
International compliance certified
Fast global parts delivery
Strong technical support team
Worldwide export experience
Need a customized production line?
Tell us your target capacity, raw materials and project timeline. Our engineers will respond within 24 hours with a full proposal -- line layout, BOM and FOB pricing.
- 24-hour response with full company profile & spec sheet
- Free customization for local materials & site conditions
- Overseas commissioning & operator training included
